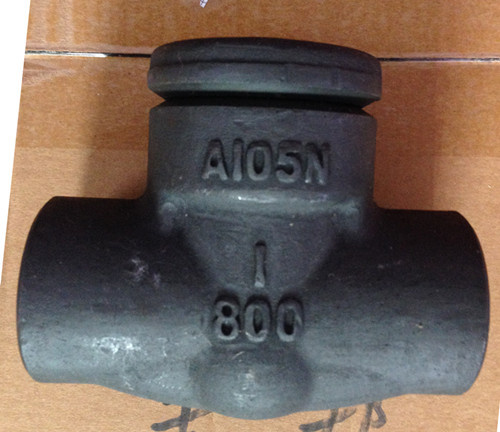

Specifications:
1. Lift type
2. Welded Bonnet;
Bolted bonnet check valves are optional
3. Guided Disc in valve body provides accurate sealing alignment
4. Socket weld ends: ASME B 16.11
Threaded ends: ANSI/ASME B 1.20.1
Butt-welded ends: ANSI B16.25
5. The gasket for the connection of Bonnet & Body is metal ring
6. Forged Steel Check Valves conform to MSS-SP-118 and ASME B 16.34. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
7. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
|
PART NAME |
CStoASTM |
AStoASTM |
SStoASTM |
|
|
A105 |
F22 |
F304L |
F316L |
|
BODY |
A105 |
A182 F22 |
A182F 304L |
A182 F316L |
|
SEAT |
A276 420 |
A276 304 |
A276 304L |
A276 316L |
|
WEDGE |
A182F 430&410 |
A182 F304 |
A182F 304L |
A182 F316L |
|
STEM |
A182 F6 |
A182 F304 |
A182F 304L |
A182 F316L |
|
GASKET |
316 WITH GRAPHITE |
316 WITH PTFE |
|
BONNET |
A105 |
A276 F304 |
A276F 304L |
A276 F316L |
|
BOLT |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
PIN |
A276420 |
A276 304 |
|
GLAND |
A276410 |
A182F 304L |
A182F F316L |
|
GLAND EYEBOLT |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
GLAND FLANGE |
A105 |
A182 F11 |
A182F 304L |
A182F 316L |
|
NUT |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
STEM NUT |
A276 420 |
|
LOCKING NUT |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
NAME PLATE |
SS |
|
HANDWHEEL |
A197 |
|
GASKET |
A473431 |
|
|
PACKING |
GRAPHIT |
PTFE |
