Forged Valve

Forged Valve
Price: Negotiable
Min Order: 1

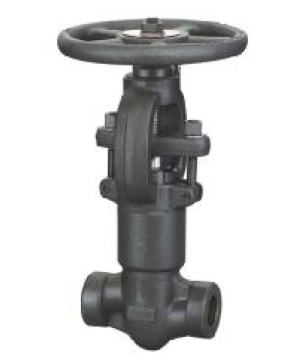

"ZGVG"Forged Pressure Seal Globe Valve

"ZGVG"valves are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304L/graphite, Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint

Design Feature:
1. Full Port or Conventional Port
2. Outside Screw and Yoke (OS & Y)
3. Two piece self-aligning packing gland
4. Bolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and pressure seal bonnet
5. Integral backseat
6. Disc can change for throttle type, needle type, ball type and check type

"ZGVG"Forged Pressure Seal Globe Valve
1. Design and manufacture: BS5352 MSS SP-118
2. Connection ends conform to:
1)Socket weld ends to ASME B16.11: JB/T 1751
2)Screwed Ends (NPT) to ANSI/ASME B1.20.1; JBT7306
3)BW conform to ANSI B 16.25; JB/T12224
4)Flanged ends conform to ANSI B16.5; JB79
3. Test & inspection conform to: API598; GB/T13927; JB/T9092
4. Structure features: A threaded and pressure seal bonnet, Y type & T type
5. Materials conform to ANSI/ASTM
6. Main materials: A105, LF2, F5, F11, F22, 304(L), 316(L), F321, MONEL etc.
7. Size: 1/8"-2"
8. Rate: 1500lb-2500lb
CHINA Zheng Guang Valve Group Co., Ltd. (ZGVG), established in 1993, integrates the design, production, examination, sales into a body in the field of valve industry. "ZGVG"is of high and new technique business enterprise which owns a registered capital of RMB 73 Million with workshop area 28000 Sq metres and building area of 35000 Sq metres...
"ZGVG" conforms to the quality management system strictly, has being a member of Valve Branch of China General Machinery Industry Association, , a member unit of Material Resource Market of Sinopec, a member of the power station parts supply network of State Power Co., for more than 15 years in manufacturing valves. There is the perfect quality management system, certified by international certificates such as ISO9001, API6D-0683, CE-1277, ISO14001, AZ successively. Nowadays, "ZGVG"has 685 workers with 19 senior engineers and 68 professional technicians more than 400 sets of excellent and modernizing machines for processing valves and heat treatment equipment among them.
"ZGVG" main products:
1. Valve Types: Gate, Globe, Check, Ball, Butterfly, flat gate, Plug, Y-Strainer, Flanges etc.
2. Standard: ANSI, API, MSS, JIS, DIN, BS, NF and GB standards.
3. Size rang: 1/4"~42" (DN6mm~1050mm),
4. Pressure range: 150LB~4500LB (0.1Mp~75.0Mp)
5. Materials range: WCB(A105N), WC1, WC6(F11), WC5, WC9(F22), LCB, LF2, CF8 (F304), CF8M (F316), CF3 (304L), CF3M (F316L), etc,
6. Working temperature -196C~730C
"ZGVG" products are widely applied in such industries as petroleum, chemical industry, natural gas, chemical fertilizer, metallurgy, pharmacy, electric power, mine and building. Meanwhile we are dedicated to opening up the international market and by now our products have exported to cover North America, Europe and the mid-east such as U. S. A, U. K., Italy, Australia, South Africa, Indonesia, Kuwait, Czech, the Netherlands, Spain and etc...Our products have own trust and a good reputation among numerous customers by right of excellent quality, favorable price, complete varieties, timely delivery and satisfactory sale before, during and after sale.

It's an eternal pursuit of"ZGVG" to "Introduce High Technology, Carry out Strict System Management, Develop Quality Product and Create a Top-class Brand and to be the best valve manufacture in china". We sincerely hope to establish steady and long cooperation with our customers.
