Forged Valves Part

Forged Valves Part
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

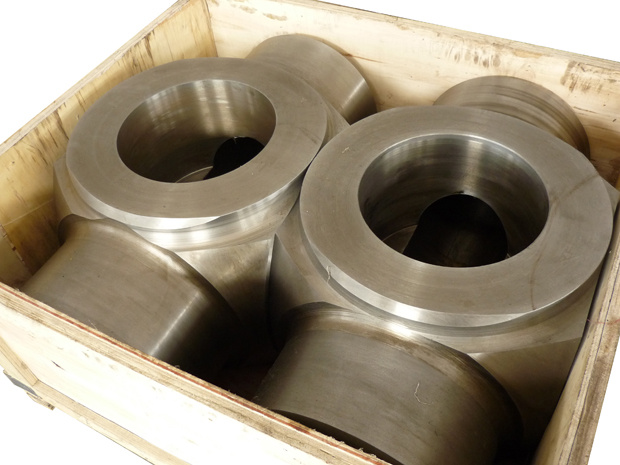

Forged valves part

Specifications
1Delivery status: Forging/forging+Normalized/forging +Q&T
2Dimention: OD100-1800mm
3Shape: According to drawings
3Delivery time: 25 days
We professionally machining and prroduce forged heavy forgings for machinery, chemistry and petroleum industries, windpower, shipping, transportation, agriculture, pipeline, metallurgy, etc

(1), among the free forgings carbon steel forgings are generally the better choice for the sake of its high tolerance strength, hardness, yield strength, elongation, crush resistance, torsion resistance and shearing resistance.

(2), we can forge forgings according to weight ranges from 50kg-15T.

(3), we have professional UT center and mechanical property testing center.

(4), we were certificated to ISO9001: 2000 and PED and BV, GL, ABS, DNV

(5), main material are 40Cr, 42CrMo, 20Cr2Ni4, 5CrNiMo, 15CrNiMo, 20CrNiMo, 35CrMo, 40CrNiMo, etc.

(6), regularly, we accept processing on giving materials.

(7), we generally produce forging blank with rough machining range from 50kg to 15t

(8), according to practical situation and customers' clear requirements we can render excellent heat treatment.

(9), as for the third party inspection, we will try out utmost to satisfy our customers' request.

(10), if you have office in China, pls kindly pay a visit to our factory, and we are with much pleasure to apply for the invitation letter for your visa.

(11), our staff are with tremendous sincerity welcome your arrival and guide! ! !

(12 ), shaft forging
1, WEIGHT≤ 15T
2, length ≤ 18m
3, MIM dia over 80mm

(13), cylinder forging
1, min OD around 80mm
2, weight of single piece ≤ 15T
3, height within 2000mm

(14), steel bar forging
1, dia above 90mm
2, length within 5m

Other forgings that our factory can make also share the same requirements
JiangYin LongYu Forging Co.,Ltd
 No.168 Shashan Road, European Industrial Park, Zhouzhuang Town, Jiangyin, Jiangsu, China
Tel:0086 1595012 4887     Fax:86-0510-86223753
Products: Free forging/Forged Open die
Material: Vacuum Degassed Ingot of Carbon Steel &Alloy steel & Stainless Steel
Forging Equipments: 1.8tons,6tons Electrical Hydraulic Hammer
  2.1ton ,750KGS,560KGS,200KGS air hammers
Heat treatment: Normalized/quench and temper/annealed/solution treatment
Machining Equipment: 1.Horizontal Turning Machine
  2.Vertical Turning Machine
  3.Milling Machine
  4.Drilling Machie
  5.CNC etc.
Quality System: ISO9001:2008
Cetificate: PED 97/23/EC,ABS,BV,GL,DNV
Products Type: Maximum Diameter(mm) Max.length(mm) Maximum weight(ton)
Ring 4900 400 35
Shaft 2000 8000 35
Block 3500 / 8
Hollows 1500 3000 8
Flange 4900 400 8
Round bar 2000 8000 15
Unusualshapes 1500 400 8
Forging Ratio: ≥3.5
Annual Production Ability: 28800 tons
QA & DOC: EN10228 3.1 Certificate,Chemical Composition Report, Mechanical Properties Report, UT Report (according to EN10228-3, SA388, Sep 1921  etc.) Heat Treatment Report, Dimensions Check Report
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Outside Diameter From 100mm to 5000mm
Molding Style: Forging
Processing Object: Metal
We are located in an industrial town -- Zhouzhuang Town, Jiangyin City, which belongs to the beautiful and fertile Yangtze River Delta. It is 18km away from Jiangyin City in the east, and 3km from Huaxi crossing of Riverside Highway in the north. Established in 1985 as a township enterprise, we became a private owned enterprise in 1997.

Our company currently covers an area of 25, 000 square meters, with a building area of about 10, 000 square meters. Our total capital reaches 80 million Yuan, including fixed assets of 30 million Yuan. We are equipped with a full set of flaw detection, and chemical testing equipment (an electro-hydraulic hammer of 8 tons, 2 air hammers of 1 ton, 3 air hammers of 750Kg, 1 air hammer of 560Kg, 1 air hammer of 150Kg); 10 saws; 3 heat treatment furnaces (75KW, 500KW, 580Kw), and 20 metal processing equipment (vertical lathe of 2.5 meters, sleeping car of 8 meters, sleeping car of 1.25 meters, various lathes, vertical drills, radial drills and other equipment).

We are a professional supplier of forging parts, and are able to produce forgeable pieces and flanges of various sizes. Our products are used in pressure vessels, mechanical manufacturing industry and other industries. We staff 108 employees, including 20% professional technical personnel, among whom 1 has senior professional title, 4 have medium-grade professional titles, and 3 have primary professional titles. We enjoy extensive experience in producing machinery forgings and we are well received by users with excellent after-sales services. Moreover, we were awarded the title of "Trusted Quality Enterprises". We are also a member of China Forging Industry Association, and have attained "Quality System Certification" and national "Pressure Pipeline Components Manufacturing Permit".

"Providing first class quality and first-rate service" and "Improving quality management system constantly to meet customers' needs" is our aim. In order to further enhance staff's awareness, we comprehensively regularize our quality system and always think about what users think.

Our company is willing to enhance sincere cooperation with all customers for mutual benefits. We look forward to your investigation and guidance.
