Forging Valve Ball Trunnion F304 F316 Ball Valve
Price: |
US $ 20-20000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Description

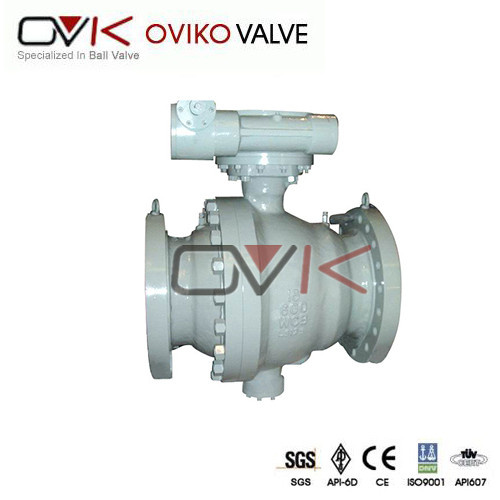

FORGED TRUNNION BALL VALVEPressure:Class150-Class2500
Size:NPS 2-48

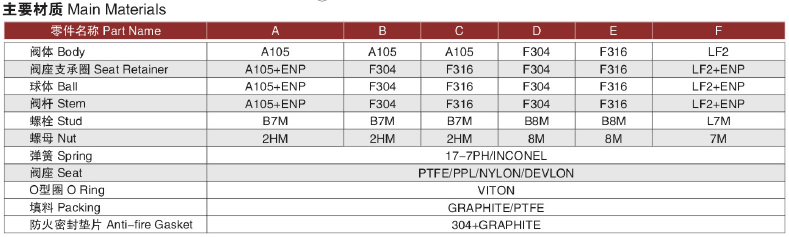

Body material: A105, 304, 316, 304L, 316L
Seat material: PTFE/NYLON/PEEK/PPL
Applicable temperature: ≤120ºC(PTFE),≤80ºC(NYLON),≤250ºC(PEEK),≤250ºC(PPL)
Design and manufacturing: API 608, API 6D
Pressure test: API 598, API 6D
Structural features: Low operation torque, emergency sealing device, fireproof structure design, reliable sealing structure, anti-static structure, special structure of automatic pressure relief towards upper stream, blow-out proof stem, corrosion resistance and sulfide stress resistance, extension stem.
Prod Model: |
OVK-150420 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
0.5"-48" |
Pressure: |
150lb-2500lb |
End Connection: |
RF/Rtj/Butt-Weld,Threaded, Socked Ends. Full Welde |
Designed And Tested: |
API 598/6D |
Fire Safe: |
API 607 and Nace Mr-01-75 |
Certificates: |
API6d,CE,ISO9001 |
Connection Form: |
Flange |
Structure: |
Fixed Ball Valve |
Type: |
Fixed Ball Valve |
Material: |
Stainless Steel |
Application: |
Household Usage |
Channel: |
Full Bore or Reduced Bore |
Nominal Pressure: |
150lb-2500lb |

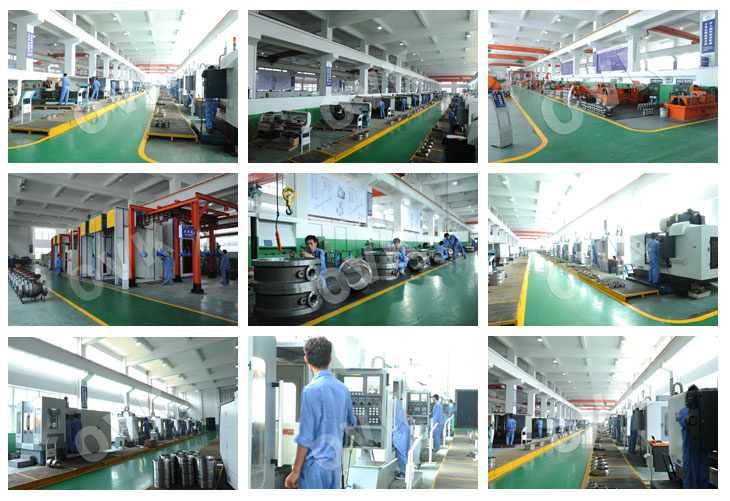

OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.
Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.
We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
