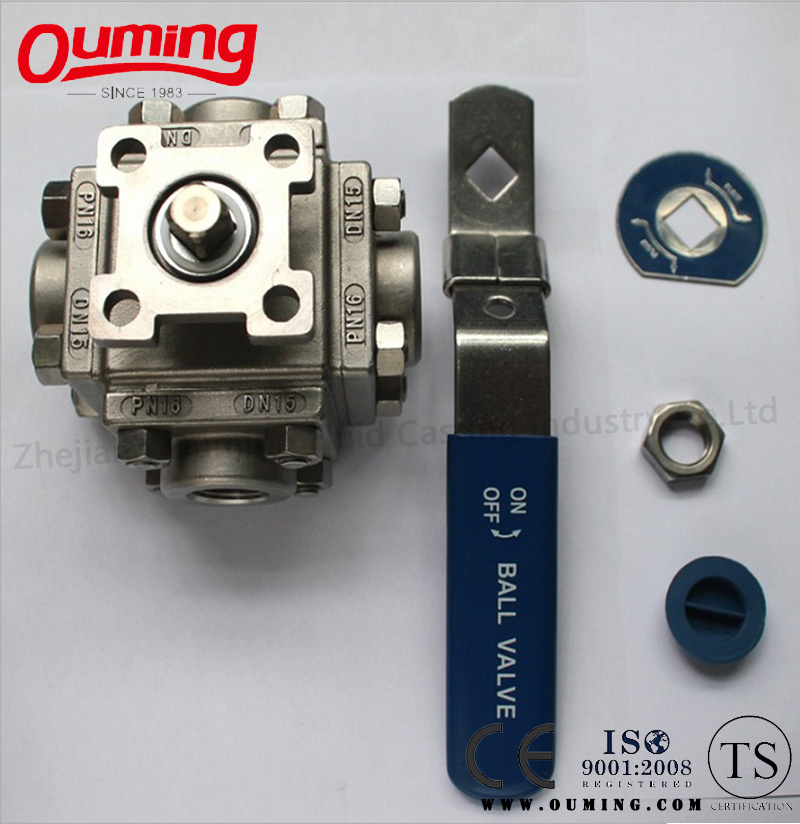

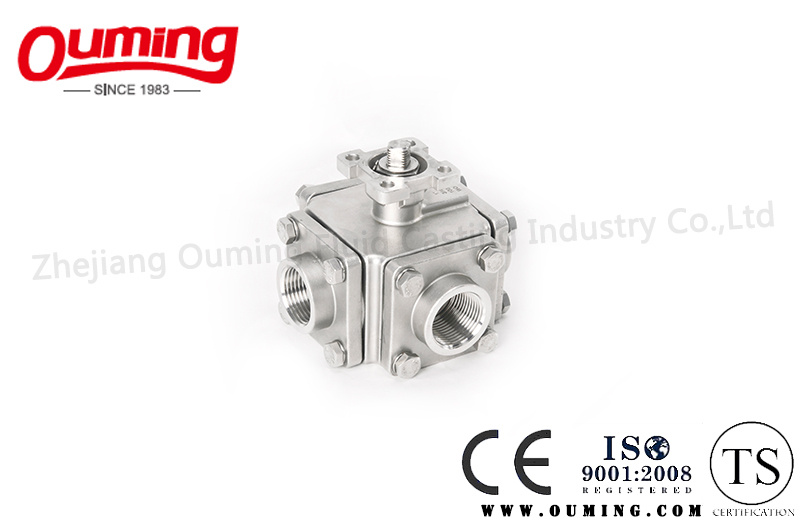

Four Way Threaded End Ball Valve with Mouting Pad

Four Way Threaded End Ball Valve with Mouting Pad
Price: US $ 50-600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Features

1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
7. ISO-5211 Mounting Pad for Actuator Available

Specifications

1). Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
2). Material: 201/304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
3).Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc
4). Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa

5). Medium Temp.: -20° C~+150° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999
8). Port: Full Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
13).  Design Standard: ASME B16.34
14).  Inspection and Testing: API 598


We will give you a reply within 24 hours after receiving your inquiry

Prod Model: Q46F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/4"-2"
Material: Stainless Steel
Connection Form: Thread
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Nominal Pressure: 1000W.O.G
Channel: Four Way
Function: Cut-off Valve
Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters

We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.

We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.

We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
