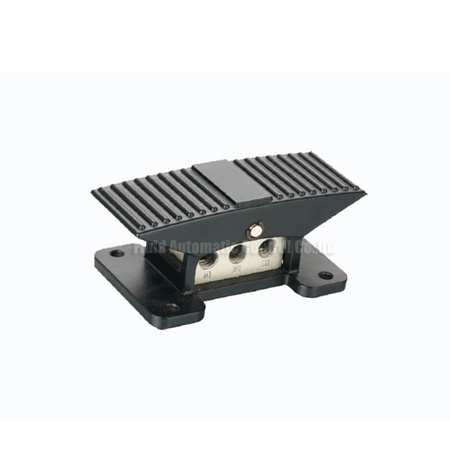

*FPV Foot Pedal valve
*Three Position Five way Center Close
*Port Size G1/4
*Compact design,small volume,very easy for installing
*Big Flow rate,Flexible application
*Stable design,long service life
ORDERING CODE |
| FPV | 35 | 08 |
| Type | Function Type | Port Size |
| FPV:FPV Series Three Position Five way Pedal Valve | 35:Three Position Five Way (Center Close) | 08:G1/4" |
|
| SPECIFICATION |
| Model no | FPV35-08 |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Three Position Five Way |
| Port Size | G1/4" |
| Effective Sectioinal Area | 8mm² |
| Motion Pattern | Direct Acting |
| Working Pressure | 0.2~0.7MPa |
| Pressure Endurance | 1.0MPa |
| Operating Temperature | 0~60ºC |
Fenghua Fluid Automatic Control Co., Ltd. is a serious professional manufacturer of Pneumatic line products.
Company located in Xikou which is the national famous scenic coastal town enjoying very convenient sea, land and air transportation
Integrating development, production and sales together, FLUID possessing advanced equipment and strict complete managing system. Currently we have main products line air service units, Directional control valve, air cylinder, air fittings, air tubings, vacuum components, pneumatic parts and hydraulic fitting etc
With over 10 years experience and thorough knowledge to pneumatic industrial sector, FLUID dedicates to provide customers the high quality products, best technical solution and faithful service.
FLUID taking"customer supreme, quality first, reputation oriented" as tenet, keeping pace of every technical improvment and innovation to provide rich stocked standard products and customerized products also.
FFLUID staff promise"Reasonable price, short leading time, never ever lie to customer".
Both for mutual benefit and prosperous futher, FLUID welcome customers domestic and abroad to contact us for a long term cooperation.
