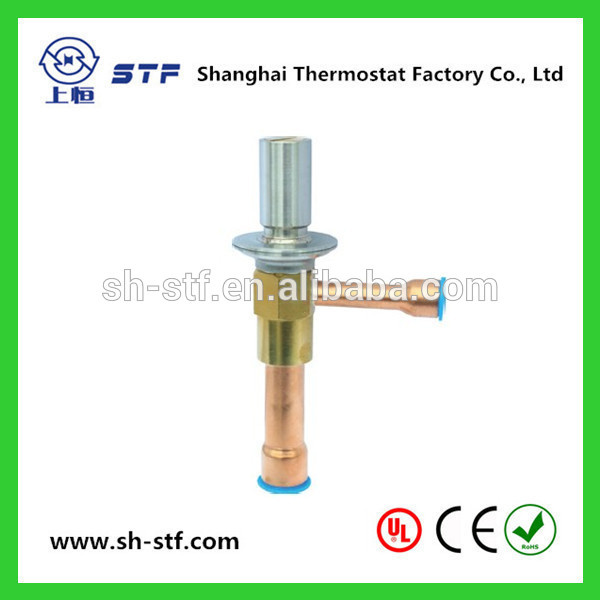

Freezer Discharge Bypass Valve
Function:
The CBX discharge-bypass valve can automatically change the opening to get the constant outlet pressure on regardless of the change of the inlet pressure (within a certain range).
General:
1. The CBX discharge-bypass valve is a kind of load adjust component for the refrigerating system with a non-adjustable compressor.
2. The CBX discharge-bypass valve can be used as automatic expansion valve under fixed pressure to maintain the fixed evaporation pressure (temperature).
3. The CBX discharge-bypass valve is capable of maintaining the minimum evaporating pressure.
4. ODF connecting.
5. Suitable for HFC and HCFC.
6. Maximum working pressure: 28bar.
Installation:
1. Bypass the hot gas to the evaporator inlet so as to increase superheat and increase the refrigerant feed and reduce the suction temperature.
2. Or add the injection valve to inject the refrigerant to the suction line to reduce the discharge temperature.
Ordering information:
Standard connecting size and factory set parameters.
If you have special requirement, please contact STF.
|
Model |
Nominal capacity (kw) |
Connection size |
|
R134a |
R22 |
R407c |
R404A/507 |
R410A |
|
CBX-01 |
1 |
2.2 |
2.1 |
1.4 |
3 |
Inlet:φ8
Outlet:φ12
|
|
CBX-02 |
1.8 |
3.5 |
3.4 |
2.6 |
4.4 |
|
CBX-03 |
2.64 |
4.8 |
4.3 |
3.5 |
6 |
|
CBX-04 |
3.2 |
5.9 |
5.3 |
4.3 |
7.4 |
|
CBX-05 |
3.8 |
7 |
6.2 |
5.1 |
8.8 |
|
CBX-06 |
4.4 |
8 |
7.8 |
5.8 |
10 |
|
CBX-07 |
5.5 |
9.7 |
8.8 |
7.1 |
12 |
|
CBX-08 |
6.6 |
12 |
10.8 |
9.6 |
14.5 |
|
CBX-09 |
7.9 |
14.4 |
12.9 |
11.52 |
17.6 |
|
CBX6-01 |
10.56 |
17.6 |
17.6 |
12.32 |
26.4 |
Inlet:3/8\1/2
Or φ10\φ12
Inlet:5/8\3/4\7/8 or φ16\φ19\φ22 |
|
CBX6-02 |
12.32 |
21.12 |
21.12 |
14.08 |
35.2 |
|
CBX6-03 |
17.6 |
24.64 |
24.64 |
15.84 |
38.72 |
|
CBX6-04 |
21.12 |
28.16 |
28.16 |
19.36 |
45.76 |
