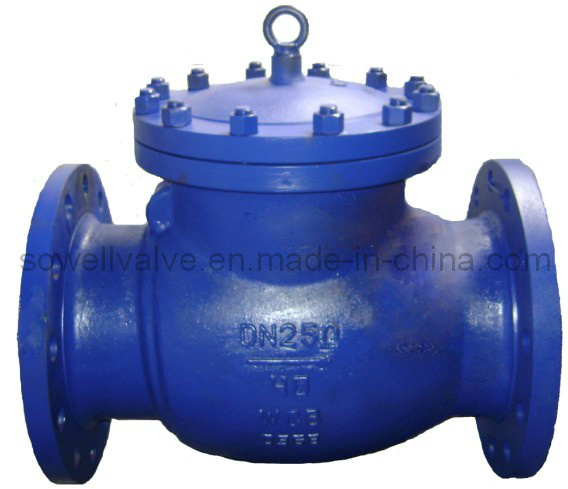

Bolted Cover
Pressure Seal Cover
Swing Type, Anti-rotation Disc
Renewable Seat Rings
Non-penetrate Disc Shaft
Horizontal Servece
Size: 2" - 48"
Pressure: 150LB - 2500LB
Connection: Flanges, RTJ Flange, Butt Weld, Groove
Material:
Carbon Steel, Forged Steel, Stainless Steel
GS-C25, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A.
|
Parts No. |
Parts Name |
Materials |
|
WCB/Trim1 |
WCB/Trim5 |
WCB/Trim8 |
CF8/304 |
CF8M/316 |
|
1 |
Body |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
2 |
Seat ring |
A105+13Cr |
A105+STL |
A105+STL |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
3 |
Disc |
ASTM A216 WCB+13Cr |
ASTM A216 WCB+STL |
ASTM A216 WCB+13Cr |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
4 |
Arm |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
5 |
Nut |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8M |
|
6 |
Arm pin |
ASTM A182 F6a |
ASTM A182 F304 |
ASTM A182 F316 |
|
7 |
Yoke |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
8 |
Bonnet nut |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8M |
|
9 |
Bonnet bolt |
AST A193 B7 |
ASTM A193 B8 |
ASTM A193 B8M |
|
10 |
Bolt |
AST A193 B7 |
ASTM A193 B8 |
ASTM A193 B8M |
|
11 |
Gasket |
304SHEET+Graphite |
304+Graphite |
316+Graphite |
|
12 |
Bonnet |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
|
13 |
Eyebolt nut |
ASTM A181 |
ASTM A181 |
ASTM A181 |
