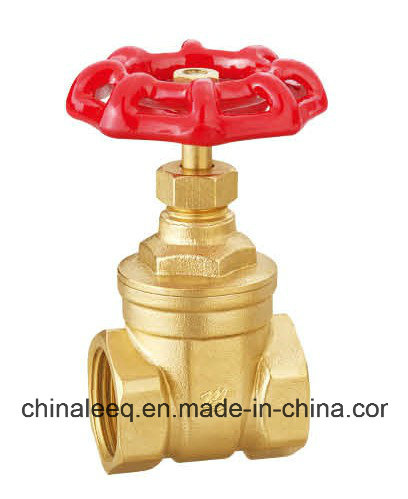

Full Bore Screw End Brass Rising Stem Gate Valve with Price

Full Bore Screw End Brass Rising Stem Gate Valve with Price
Price: US $ 1-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Quick Details

Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Power:
Manual
Material:
Brass
Temperature of Media:
Medium Temperature
Media:
Water
Place of Origin:
China
Brand Name:
Liqian

Specifications

Specification: rising stem, solid wedge, full bore, screw ends
Manufactured according to BS 5154 : 1991 Standard

Brass gate valve : Liqian brand



Specification:  rising stem, solid wedge, full bore, screw ends

Manufactured according to BS 5154 : 1991 Standard

BS 21 / ISO 228-1-2000 Standard threads

Max working pressure 10 bar

Max working temperature 120 °C



MATERIAL

PARTS

MATERIAL

Body

Brass

Disc

Brass

Gland packing

PTFE

Bonnet

Brass

Gland nut

Brass

O-ring

Teflon

Gland ring

Brass

Lock nut

Brass

Stem

Brass

Hand wheel

Cast iron

Name plate

Aluminium

Wheek nut

Inox stainless steel





DIMENSION

Valve  size  inch
        mm

½

15

¾

20

1

25

1 ¼

32

1 ½

40

2

50

2 ½

65

3

80

4

100

ØA (mm)

54

54

60

71

71

77

110

120

150

B (mm)

75

85

90

105

114

138

166

190

226

C (mm)

42

44

52

56

62

66

80

89

110

ØD (mm)

15

19.5

24.5

30

35

46

60

72

90

E (mm)

9.5

12

13

14.5

15

16

20

22.5

27

Sw (mm)

26

32

38

48

54

67

83

94

125

Weight (g)

270

330

450

630

830

1380

2200

2840

5600

Pcs/ box

10

10

6

4

4

2

1

1

1























About-Us
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001:2008 quality management system, ISO 14001:2004 environmental management system, and OHSAS 18001:2007 Occupational Health & Safety System, also with CE, API, KS and Gost certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. and the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.

To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Brass
Connection Form: Thread
Seal Surface: Parallel Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Water Industrial Usage
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.

Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.

To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
