Full Flanged Knife Gate Valve
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description

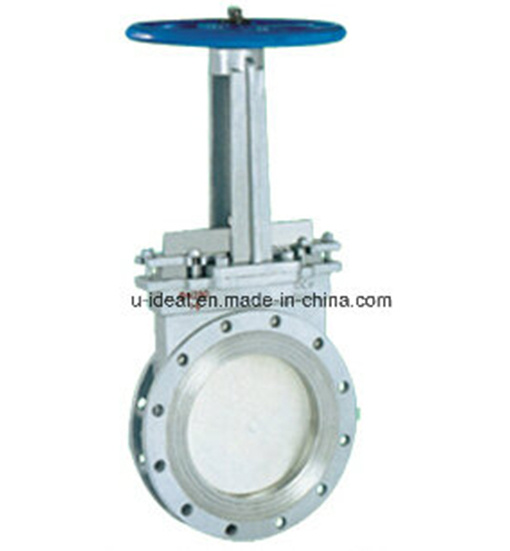

Full Flanged Knife Gate Valve
Knife gate valves are available in various designs, one-piece body and two-piece bodies, rising stem and non-rising stem, uni-direction and bi-direction structures, resilient and metal seat rings, bonnetless and bolted bonnet designs. For optional designs, deflection cone could divert the flow of abrasive slurries and protect valve seat from abrasion, V port disc and through conduit design are used for throttling service, per customers' requirements.
Features of Full Flanged Knife Gate Valves:
Unidirection design
Full flanged cast steel body
Self-cleaning mechanism
Rising stem, outside screw & yoke
Yoke type: Plate or Casting
Applicable Standards of Full Flanged Knife Gate Valves:
A) Design & Manufacture: MSS SP-61, ASME 16.34
B) Face to Face: MSS SP-81, ASME B16.10, EN 558
C) Connection End: ASME B16.5, EN 1092, JIS B2220
D) Test: MSS SP-81
Sizes: 2" - 48" or DN 50 - DN 1200
Pressure Rating: Class150 or PN6 - PN16
Materials of valve body: WCB, LCB, WC6, CF8, CF3, CF8M, CF3M, 4A, etc.
Operation: Manual, Gear, Pneumatic, hydraulic and Electric actuator
Would you like to get more products information or order it, please call me, or click Inquiry Now to fill in the Form.
It helps you get more informations you need to trade confidently with suppliers.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve
CLASS150 |
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 178 | 191 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| L1-BW(mm) | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 |
| L2-RTJ(mm) | 191 | 203 | 216 | 241 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 |
| H(mm) | 400 | 490 | 510 | 585 | 795 | 1015 | 1230 | 1465 | 1755 | 2030 | 2210 | 2510 | 2880 |
| K(mm) | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 600 | 750 | 750 |
| CLASS300 |
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L1-BW(mm) | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L2-RTJ(mm) | 232 | 257 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 |
| H(mm) | 470 | 525 | 533 | 610 | 845 | 1050 | 1295 | 1600 | 1830 | 2035 | 2195 | 2470 | 2900 |
| K(mm) | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 450 | 500 | 500 | 600 | 750 | 750 |
| CLASS600 |
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L1-BW(mm) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L2-RTJ(mm) | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 |
| H(mm) | 495 | 550 | 615 | 735 | 1005 | 1245 | 1480 | 1730 | 1915 | 2050 | 2260 | 2620 | 2900 |
| K(mm) | 200 | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 |
| CLASS900 |
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L1-BW(mm) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L2-RTJ(mm) | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 |
| H(mm) | 590 | 700 | 740 | 870 | 1120 | 1390 | 1592 | 1765 | 2025 | 2175 | 2510 | 2750 | 3240 |
| K(mm) | 250 | 300 | 350 | 450 | 500 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 | 1000 |
| CLASS1500 |
| size(in) | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L,RF(mm) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 |
| L1-BW(mm) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 |
| L2-RTJ(mm) | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 | 1972 |
| H(mm) | 615 | 705 | 750 | 927 | 1190 | 1525 | 1855 | 2185 | 2215 | 2380 | 2580 | 2195 | 3400 |
| K(mm) | 250 | 350 | 350 | 450 | 600 | 750 | 850 | 850 | 960 | 960 | 1000 | 1000 | 1250 |
| Prod Model: |
GL600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design & Manufacture: |
Mss Sp-61, Asme 16.34 |
| Sizes: |
2" - 48" or Dn 50 - Dn 1200 |
| Connection End: |
Asme B16.5, En 1092, JIS B2220 |
| Pressure Rating: |
Class150 or Pn6 - Pn16 |
| Materials Of Valve Body: |
Wcb, Lcb, Wc6, CF8, CF3, CF8m, CF3m, 4A, etc. |
| Material: |
Cast Iron |
| Connection Form: |
Folder |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Standard: |
------Webkitformboundarys0cwtmtdpvonw9 |
