Full Opening Check Valve API6d ANSI Wcb
Price: |
US $ 39-500/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |

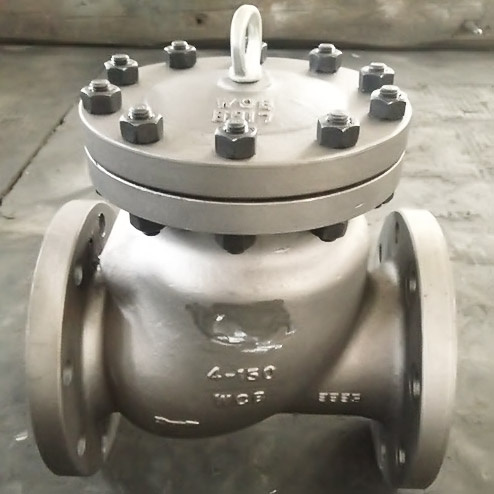

RIDI full opening check valve can be capable for pig ball cleaning service. For big size, to prevent potential water hammer damage caused by disc closing, a dashpot device can be assembled to control the disc closing time. Both soft seat & metal seat are available.Face-Face Dimension: ASME B16.10
End Connection: ASME B16.5, ASME B16.47, MSS SP44 , ASME B16.25
Test:API 598, BS 6755
Products Range:
Size:2" ~48"
Rating : ANSI 150lb ~ 2500lb
Body Materials:Carbon Steel, Stainless steel
End connection:RF, RTJ, B.W
Swing check design
Suitable for pig ball service
Soft or metal to metal seating
Welded or threaded seat ring
Optional weight lever design
Optional Pneumatic operated for quick shut off within 1 second
Refinery
Petrochemical
Power plant
General Industry
Prod Model: |
H44-150lb |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
4 Inches |
Connection Form: |
Flange |
Material: |
Cast Steel |
Function: |
Ddcv Double Lobe |
Application: |
Industrial Usage |
Structure: |
Full Opening |
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.

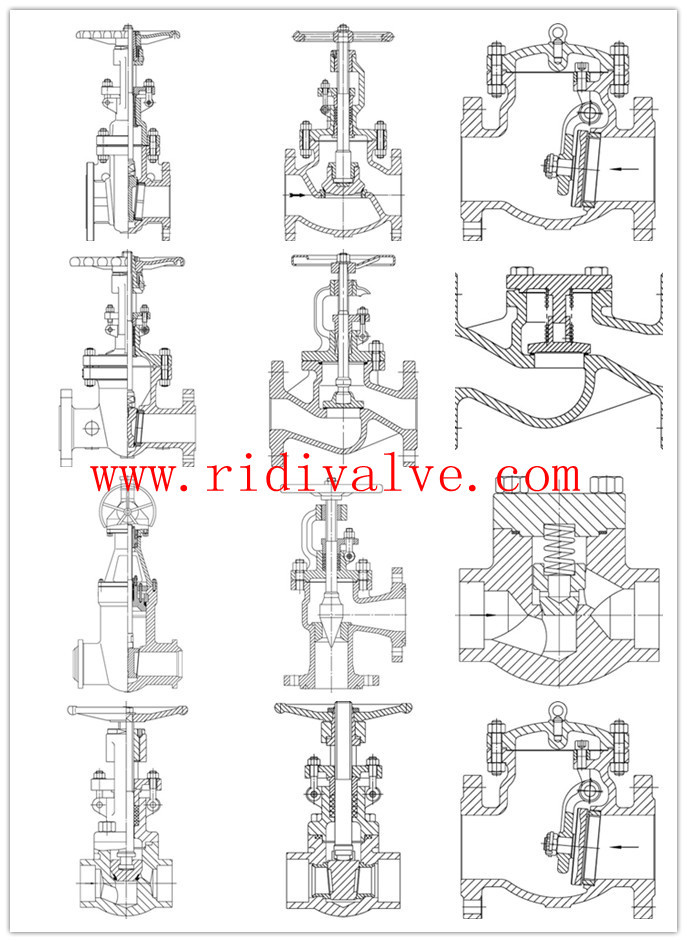

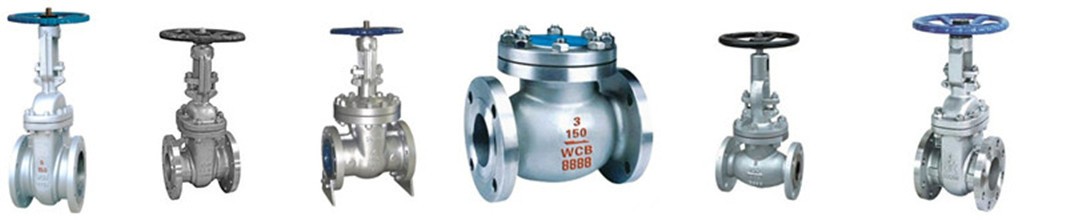

RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.

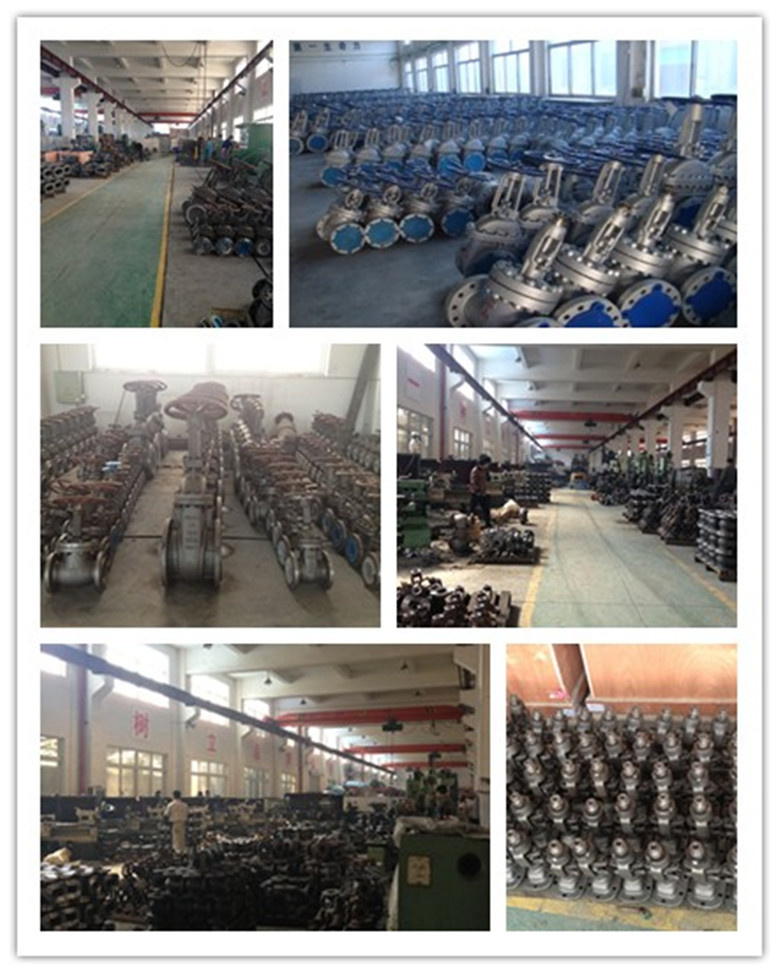

The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.
RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.
Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
