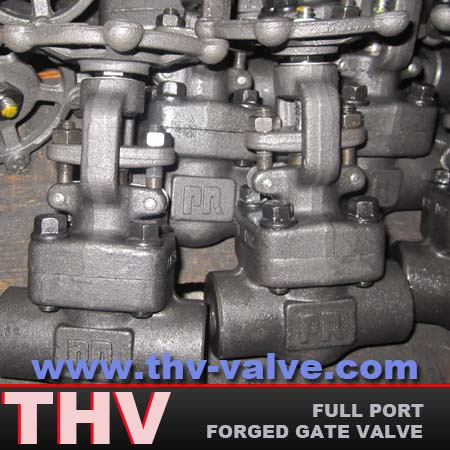

Full port forged steel gate valve from Taihong valves are available in flanged end, welded end, screw end gate valves. Bonnet and body connected by options of Bolted Bonnet, Welded Bonnet & Pressure Seal Bonnet.Standards:
Design Standard: API 602 / ASME B16.34 / BS5352
Testing Standard: API 598
Face to face according to ASME B16.10
Connection Standards:
NPT according to ANSI / ASME B1.20.1
SW according to ANSI / ASME B16.11
Flange according to ANSI / ASME B16.5
Butt-welded according to ANSI / ANSI B16.5
Marking MSS SP25
Pressure Class: from Class150 to Class4500
Size from 1/2" to 3"
Main Materials: A105; LF2; F5; F11; F22; 304L; 316L; F347; F321; F51; Monel; 20 alloy, etc.
Features:
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral-wounded gasket
Integral backseat

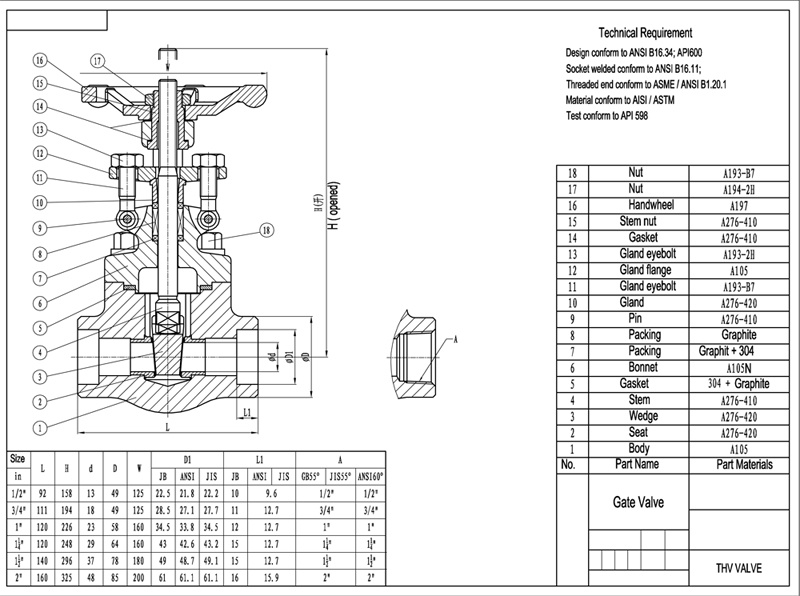

NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
2 |
Seat Ring |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
3 |
Wedge |
A276 430&410 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
5 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
7 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
8 |
Pin |
A276 420 |
A182 F304 |
9 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
10 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
11 |
Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
12 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
13 |
Yoke Nut |
A276 420 |
14 |
H.W.Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
15 |
Nameplate |
SS |
16 |
Handwheel |
A197 |
17 |
Bearing Gasket |
A473 431 |
18 |
Stem Packing |
Flexible Graphite |
PTFE |
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH2OOH etc |
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 |
