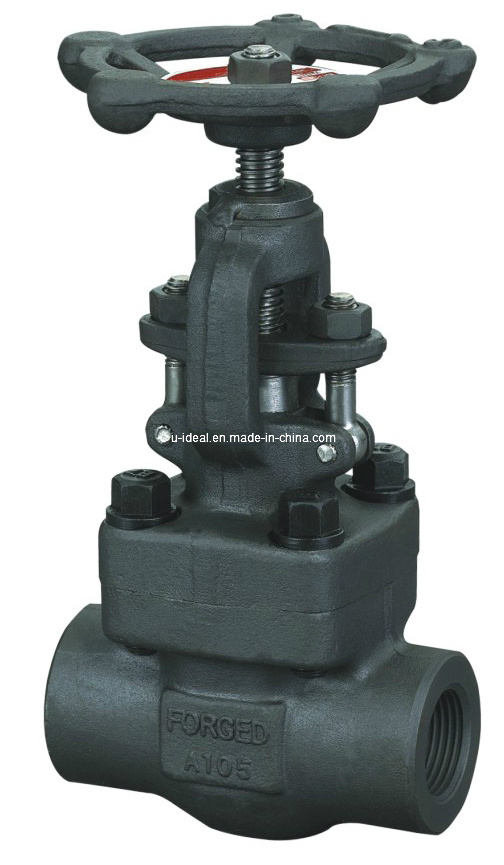

Full Port Forged Steel Gate Valves
| Price: |
US $ 90/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Specifications:
1. BB - Bolted bonnet
2. OS&Y - outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet & Body
5. Graphite stem packing
6. Socket welding: ANSI B16.11
Screw ends: ANSI B1.20.1
Butt welding: ANSI B16.25
7. Forged Steel Gate Valves conform to API 602, BS5352 and ASME B 16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.
8. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
| NPS | Conv. | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
|
| Full |
| 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" |
| L | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 |
| H() | 158 | 158 | 169 | 197 | 236 | 246 | 283 | 330 |
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Weight | Bolted | 2.1 | 2.0 | 2.3 | 4.3 | 5.9 | 6.9 | 11.1 | 15.2 |
| Welded | 1.8 | 1.7 | 2.0 | 3.8 | 5.1 | 6.1 | 10.2 | 14.2
|
| NO. | Part Name | CStoASTM | AStoASTM | SStoASTM |
| A105 | F22 | F304(L) | F316(L) |
| 1 | Body | A105 | A182F22 | A182F304(L) | A182F316(L) |
| 2 | Seat Ring | A276420 | A276304 | A276304(L) | A276316(L) |
| 3 | Wedge | A182F430&410 | A182F304 | A182F304(L) | A182F316(L) |
| 4 | Stem | A182F6 | A182F304 | A182F304(L) | A182F316(L) |
| 5 | Gasket | Corrugated SS+graphite | SS+PTFE |
| 6 | Bonnet | A105 | A276f304 | A276F304(L) | A276F316(L) |
| 7 | Bonnet Bolt | A193B7 | A193B16 | A193B8 | A193B8M |
| 8 | Pin | A276420 | A276 304 |
| 9 | Gland | A276410 | A182F304(L) | A182F316(L) |
| 10 | Gland Eyebole | A193B7 | A193B16 | A193B8 | A193B8M |
| 11 | Gland Flange | A105 | A182F11 | A182F304(L) | A182F316(L) |
| 12 | Gland Nut | A1942H | A1944 | A1948 | A1948M |
| 13 | Yoke Nut | A276420 |
| 14 | H.W.Lock Nut | A1942H | A1944 | A1948 | A1948M |
| 15 | Nameplate | SS |
| 16 | Handwheel | A197 |
| 17 | Bearing Gasken | A473431 |
|
| 18 | Stem Packing | Flexible | PTFE |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO 3 ,CH 3 OOH etc |
| Suitable Temperature | _29~425 degrees Celsius | _29~550 degrees Celsius | _29~200 degrees Celsius |
| Prod Model: |
Z61W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8''--21/2'' |
| Socket Welding: |
ANSI B16.11 |
| Screw Ends: |
ANSI B1.20.1 |
| Butt Welding: |
ANSI B16.25 |
| Main Materials: |
A105, Lf2, F5, F22, F304, F316, F347, F321, F51, M |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Pressure: |
150lb--1500lb |
