Specifications:?
1. BB -?Bolted bonnet
2. OS&Y -?outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet &?Body
5. Graphite stem packing
6. Socket welding: ANSI B16.11
Screw ends: ANSI B1.20.1
Butt welding: ANSI B16.25

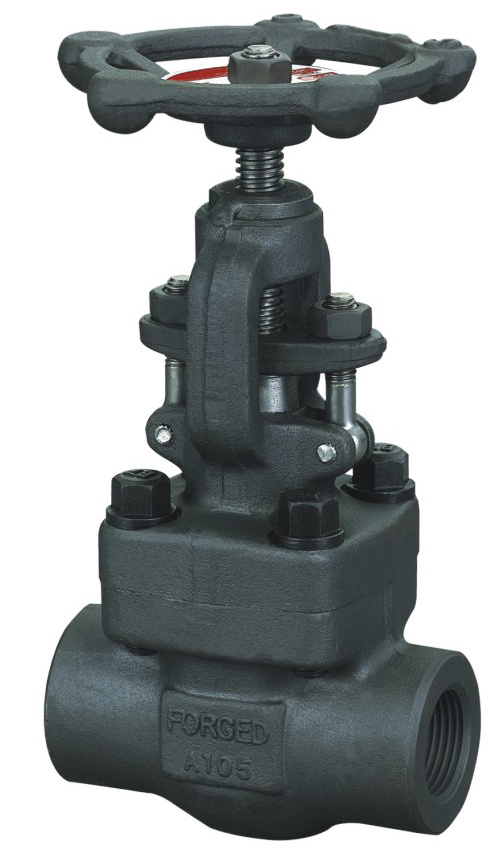

7. Forged Steel Gate Valves conform to API 602, BS5352 and ASME B?16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.?
8. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
L |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
178 |
H() |
158 |
158 |
169 |
197 |
236 |
246 |
283 |
330 |
W |
100 |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
Weight |
Bolted |
2.1 |
2.0 |
2.3 |
4.3 |
5.9 |
6.9 |
11.1 |
15.2 |
Welded |
1.8 |
1.7 |
2.0 |
3.8 |
5.1 |
6.1 |
10.2 |
14.2
|
NO. |
Part Name |
CStoASTM |
AStoASTM |
SStoASTM |
A105 |
F22 |
F304(L) |
F316(L) |
1 |
Body |
A105 |
A182F22 |
A182F304(L) |
A182F316(L) |
2 |
Seat Ring |
A276420 |
A276304 |
A276304(L) |
A276316(L) |
3 |
Wedge |
A182F430&410 |
A182F304 |
A182F304(L) |
A182F316(L) |
4 |
Stem |
A182F6 |
A182F304 |
A182F304(L) |
A182F316(L) |
5 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
6 |
Bonnet |
A105 |
A276f304 |
A276F304(L) |
A276F316(L) |
7 |
Bonnet Bolt |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
8 |
Pin |
A276420 |
A276 304 |
9 |
Gland |
A276410 |
A182F304(L) |
A182F316(L) |
10 |
Gland Eyebole |
A193B7 |
A193B16 |
A193B8 |
A193B8M |
11 |
Gland Flange |
A105 |
A182F11 |
A182F304(L) |
A182F316(L) |
12 |
Gland Nut |
A1942H |
A1944 |
A1948 |
A1948M |
13 |
Yoke Nut |
A276420 |
14 |
H.W.Lock Nut |
A1942H |
A1944 |
A1948 |
A1948M |
15 |
Nameplate |
SS |
16 |
Handwheel |
A197 |
17 |
Bearing Gasken |
A473431 |
|
18 |
Stem Packing |
Flexible |
PTFE |
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO 3 ,CH 3 OOH etc |
Suitable Temperature |
_29~425 degrees Celsius |
_29~550 degrees Celsius |
_29~200 degrees Celsius |
