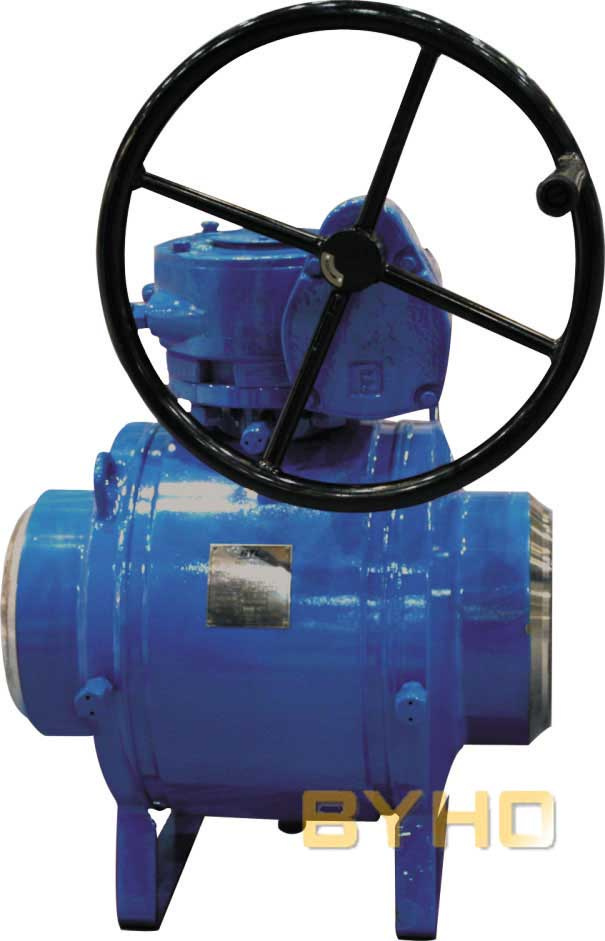

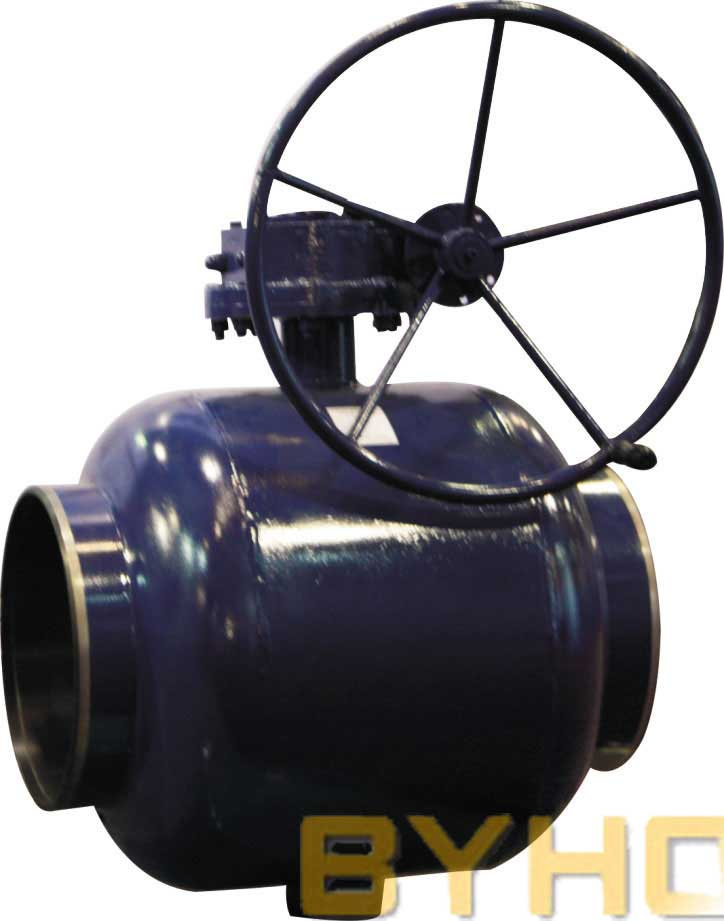

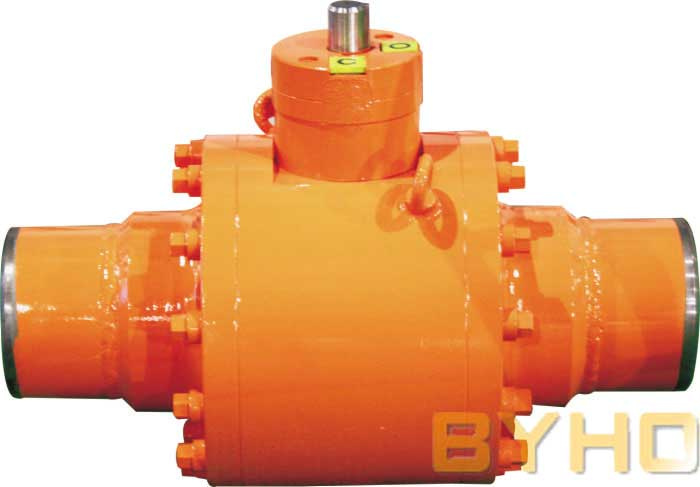

Fully Weld Ball Valve
Specifications
1. Size: 2"~40"
2. Class: 150~1500Lb
3. Design: ASME B16.34/API 6D
4. Test: API 598/API 6D
5. Fire Safe Test: API 607
SPECIFICATIONS
1. Size: 2"~40"
2. Class: 150~1500Lb
3. Design: ASME B16.34/API 6D
4. Face to Face: ASME B16.10
5. End Flange: ASME B16.5
6. BW End: ASME B16.25
7. Test: API 598/API 6D
8. Fire Safe Test: API 607/API 6FA
9. Special: NACE MR-01-75
10. Application: Chemical processing, Oil Field & Power Plant, Hydrocarbon processing
FEATURES
1. Two & Three Pieces Cast Steel Body
2. Trunnion Mounted Ball, Full Bore
3. Anti-static Device
4. Blow-out Proof Stem
5. Fire Safe Design
6. Emergency Sealant Injector
7. Vent Valve, Drain Valve
8. Lifting Lugs and supporting feets
STANDARD MATERIAL LIST |
No. | Parts Name | Material |
1 | Bonnet | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
2 | Spring | Inconel X-7505, SS304, SS316 |
3 | Seat | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
4 | O-ring | PTFE |
5 | Seat Ring | R-PTFE, PEEK, PPL, DEVLON |
6 | Body | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
7 | Ball | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
8 | O-ring | Viton |
9 | Trunnion | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
10 | Sliding Bearing | SS304+PTFE |
11 | O-ring | Viton |
12 | O-ring | Viton |
13 | Support | Q235-A |
14 | Drain Valve | 1020+ZN, A182 F304, F304L, F316, F316L |
15 | Grese Valve | 1020+ZN, A182 F304, F304L, F316, F316L |
16 | Vent | 1020+ZN, A182 F304, F304L, F316, F316L |
17 | Stem | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
18 | Anti-static Spring | Stainless Steel |
19 | O-ring | Viton |
20 | Gland Gasket | SS304+Graphite |
21 | Sliding Bearing | SS304+PTFE, SS316+PTFE |
22 | O-ring | Viton |
23 | Bolt | A193 B7, B7M, B8, B8M |
24 | Gasket | SS304+Graphite |
25 | Lifting Lug | Q235-A |
26 | Bonnet | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
27 | Top Flange | A105+ENP, A182 F6, F304, F304L, F316, F316L, F51 |
28 | Stud | A193 B7, B7M, B8, B8M |
29 | Packing | Graphite |
30 | Key | 1045, A182 F304, F304L, F316, F316L |
31 | Worm Gear | Duction Iron |
32 | Bolt | A193 B7, B7M, B8, B8M |
33 | Gasket | SS304+Graphite |
