Specifications
1.Natural Gas/LPG
2.5 installation methods
3.3 models for optional
4.Independent/network/auto shut off gas valve
5.CE

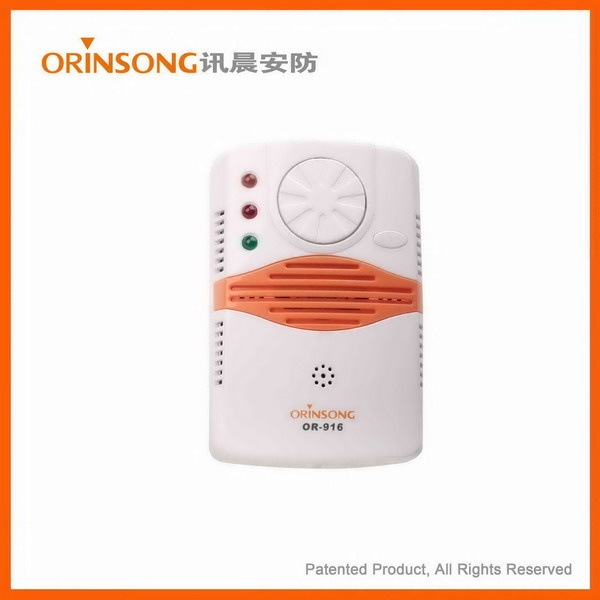

OR-G916 Gas Leak Detector Alarm Natural Gas Detector Solenoid Valve
Main Features
1.Wall mounted, 5 installation methods for various requirements
2.DC 12V/AC 220V, inner switched power supply
3.MCU processing, intelligent analyzing
4.Low power consumption
5.Automatic fault detection, early warning
6.Detachable gas convection window
7.Independent / Network / Auto Shut off Gas Valve
8.Adopted SMT, High EMI/RFI Immunity
Technical Specifications
Induced Gas | Natural Gas / LPG |
Input Voltage | DC 12V/AC 220V |
Operating Current | ≤50mA (DC12V) |
Alarm Current | ≤100mA (DC12V) |
Power Consumption | <2W |
Alarm Sound Level | ≥85dB/m |
Alarm Density | 10%LEL (0.5%) (5000PPM) with CH4 |
Operating Temperature | -10°C- +55°C |
Operating Humidity | ≤95% RH |
Alarm Mode | Flash & Sound Alarm / Shut off Gas Valve / Network Alarm Signal |
Dimension | 100*66*33mm |
7 Subdivided Models Usage
Model No. (Subdivided) | Alphabet Indication | Description (Yes/No) |
Terminal Block | Two Plugs (European & American Standard) | Plug Cover | Power Wire (1M, 0.75M2) | Installation Bracket | Electromagnetic Valve controlling |
OR-G916UD | U-- AC220V D-- Stand Alone | N | Y | N | N | N | N |
OR-G916ULH | U-- AC220V L-- Network H-- Household Usage | Y | Y | Y | Y | Y | N |
OR-G916ULE | U--- AC220V L--- Network E--- Engineering Usage | Y | N | N | Y | Y | N |
OR-G916VLE | V-- DC12V L-- Network E-- Engineering Usage | Y | N | N | N | Y | N |
OR-G916VALE | V-- DC12V A-- Electromagnetic Valve L-- Network E-- Engineering Usage | Y | N | N | N | Y | Y |
OR-G916UALE | U--- AC220V A--- Electromagnetic Valve L--- Network E--- Engineering Usage | Y | N | N | Y | Y | Y |
OR-G916UALH | U-- AC220V A-- Electromagnetic Valve L-- Network H-- Household Usage | Y | Y | Y | Y | Y | Y |
Established in 2008, our company is specialized in the whole process of research, development, manufacture and marketing of fire alarm and security products, including fire control panel, smoke detector, heat detector, manual call point, fire strobe siren, fire alarm bell, gas detector, PIR, glass break detector, water detector, burglar alarm system, etc.
Our company covers an area of 2, 000 square meters with over 100 staff members and 10 researchers. Our products are exported to over 40 countries abroad with an annual turnover up to USD10, 000, 000.
Research and Development is a key factor for a company to progress. Each year, we invest 20% in R&D Department. By far, we have got 12 patents. To ensure a steady and sustainable growth, our company has passed ISO9001: 2008 quality management system. Our products are approved with CE and CCC.
Welcome your OEM & ODM orders! We will provide you with high-quality products and the best service.
