Through Conduit Bolted Bonnet Gate Valve Body
We could manufacture all kinds of gate valve body according to our customers' requirements.

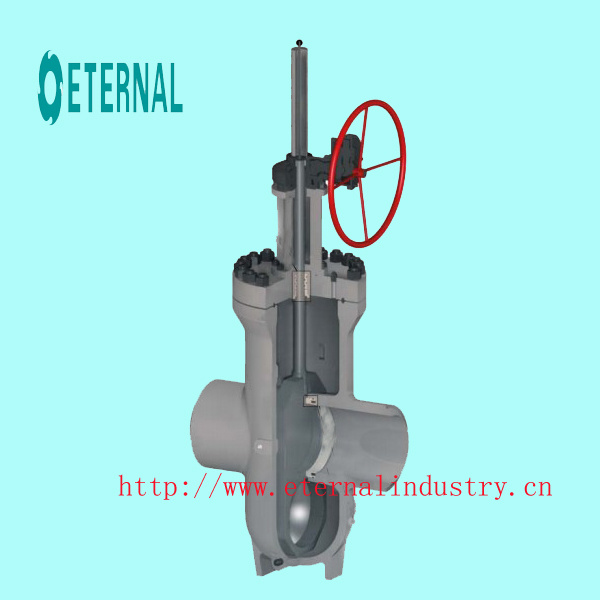

Through Conduit Bolted Bonnet Gate Valve
This type gate valves are an alternative to ball valves for transmission pipelines. The disc is of slab type gate, seat rings are floating, energized by means of multiple springs, and the line fluid pressure pushes the upstream ring against the disc, thus assuring the sealing.
Two basic sealing systems are provided: Soft seating and metal-to-metal seating. The first for gas ans clean liquids service, the second for fluids containing solids or otherwise abrasive components.
1. Materials:
Carbon steels, low temperature carbon steel, austenitic stainless steels, duplex and superduplex stainless steel and nickel alloys.
Standard of reference is API 6D full bore.
2. Pressue classes:
The pressure classes are normally ranging from 150# to 300#, to 600#.
Pressure classes meet ANSI standard.
3. Size:
Size range depends on pressure class rquirements.
Note:
We could supply gate valves with different dimensions and pressure designed to the specific requirements of the customer(temperature, pressure, size of the line)
Welcome to send inquiry to us!
Jiangyin Eternal Oil Equipment Co., Ltd is setted up in July, 2008, which is seperated from Jiangyin Eternal Heavy Industry Co., Ltd. Eternal Oil equipment company specialize on the design and manufacturing of drilling tools, wellhead equipment and mud pump spare parts on land or offshore oil industry.
Eternal Oil equipment company own a series of CNC machine tools and material testing facility, including CNC lathe, CNC vertical machining center, CNC frame type machining center, Ultrasonic test machine, Magnetic test machine and all kinds mechanical property test machine etc.
Jiangyin Gaoyuan Forging Co., Ltd, which is its auxiliary forging plant, it owns 1 set 3000 tons hydraulic forging press, 1 set 5 tons forging hammer, 1 set 1 ton mforging hammer, 1set ring rolled machine with max diameter 3000mm, 2 set ring rolled machine with max 1800mm.
Eternal oil equipment company adopt CAD design, 3D finite element analysis and ADAMS simulation study. The products quality has been accepted by all of the world.
Eternal company is located in Jiangyin city, Jiangsu Province, which is 180 KM from Shanghai airport
