Gate Valve
Material: A126B
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: 125LB

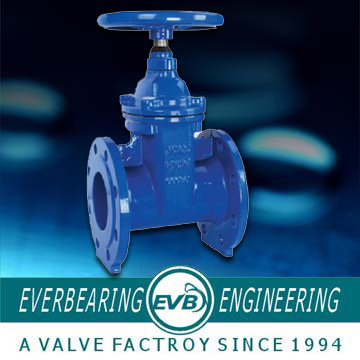

125LB gate valve, Factory Price.
|
ANSI Non Rising Stem Gate Valve Specification |
|
Bolted Bonnet; Outside Screw & Yoke Rising Stem; Solid Wedge Design Standard: MSS SP-70 Face to Face: ANSI B16.10 |
|
Working Temp: 100 ° C Working Pressure: PN10 or PN16 Suitable Media: Water, Steam, Oil ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, Non Rising Stem gate valve should be left in an open position to allow complete drainage. |
|
No |
Part Name |
Materials |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Wedge Ring |
ASTM B36 |
Brass |
|
4 |
Wedge |
ASTM A126A(B) |
GG20 GG25 |
|
5 |
Bolt |
A216 WCB |
GS-C25 |
|
6 |
Nut |
A216 WCB |
GS-C25 |
|
7 |
Washer |
A216 WCB |
GS-C25 |
|
8 |
Bonnet Gasket |
Grapihte |
Graphite |
|
9 |
Packing |
Grapihte |
Graphite |
|
10 |
Bolt |
A216 WCB |
GS-C25 |
|
11 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
|
12 |
Washer |
A216 WCB |
GS-C25 |
|
13 |
Nut |
A216 WCB |
GS-C25 |
|
14 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
15 |
Yoke Nut |
ASTM B36 |
Brass |
|
16 |
Nut |
A216 WCB |
GS-C25 |
|
17 |
Handwheel |
ASTM A126B |
GG25 |
|
18 |
Stem |
SS410 |
X10Cr13 |
|
Dimensions( ANSI B16.1 Flange drilling) |
|
DN |
D |
D1 |
L |
H |
b |
n |
d |
|
2" |
152 |
120.7 |
177.8 |
330 |
15.8 |
4 |
19 |
|
2.5" |
178 |
139.7 |
190.5 |
385 |
17.5 |
4 |
19 |
|
3" |
191 |
152.4 |
203.2 |
420 |
19 |
4 |
19 |
|
4" |
229 |
190.5 |
228.6 |
500 |
23.9 |
8 |
19 |
|
5" |
254 |
215.9 |
254 |
660 |
23.9 |
8 |
22 |
|
6" |
279 |
241.3 |
266.7 |
740 |
25.4 |
8 |
22 |
|
8" |
343 |
298.5 |
292.1 |
930 |
28.5 |
8 |
22 |
|
10" |
406 |
362 |
330.2 |
1130 |
30.2 |
12 |
25 |
|
12" |
483 |
431.8 |
355.6 |
1330 |
31.8 |
12 |
25 |
