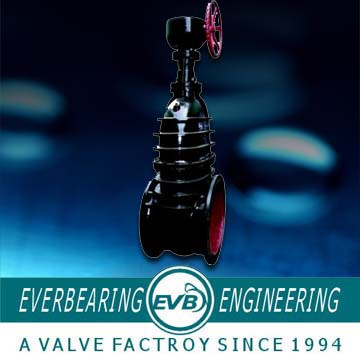

Gate Valve
Gear Operation Flange Gate Valve,
Cast Iron Gate Valve
Gear Operation Gate Valve
Material: GG25
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
DIN gate valve Specification |
Iron PN16 gate valve Application |
Bolted Bonnet; Outside Screw & Yoke Rising Stem; Solid Wedge Design Standard: DIN3352 Face to Face: DIN3202 F4 |
Working Temp: 100 ° C Working Pressure: PN10 or PN16 Suitable Media: Water, Steam, Oil, ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, Iron PN16 gate valve should be left in an open position to allow complete drainage. |
DIN gate valve Materials |
No |
Part Name |
Materials |
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
3 |
Wedge Ring |
ASTM B36 |
Brass |
4 |
Wedge |
ASTM A126A(B) |
GG20 GG25 |
5 |
Bolt |
A216 WCB |
GS-C25 |
6 |
Nut |
A216 WCB |
GS-C25 |
7 |
Washer |
A216 WCB |
GS-C25 |
8 |
Bonnet Gasket |
Graphite |
Graphite |
9 |
Packing |
Graphite |
Graphite |
10 |
Bolt |
A216 WCB |
GS-C25 |
11 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
12 |
Washer |
A216 WCB |
GS-C25 |
13 |
Nut |
A216 WCB |
GS-C25 |
14 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
15 |
Yoke Nut |
ASTM B36 |
Brass |
16 |
Stem |
SS410 |
X10Cr13 |
17 |
Handwheel |
ASTM A126B |
GG25 |
18 |
Nut |
A216 WCB |
GS-C25 |
|
Dimensions(DIN Iron gate valve) |
|
DIN gate valve
DN |
D |
D1 |
D2 |
L |
H |
b |
n |
d |
50 |
165 |
125 |
102 |
150 |
330 |
17 |
4 |
18 |
65 |
185 |
145 |
122 |
170 |
385 |
17 |
4 |
18 |
80 |
200 |
160 |
138 |
180 |
420 |
19 |
4 |
18 |
100 |
220 |
180 |
158 |
190 |
500 |
19 |
8 |
18 |
125 |
250 |
210 |
188 |
200 |
660 |
21 |
8 |
18 |
150 |
285 |
240 |
212 |
210 |
740 |
21 |
8 |
23 |
200 |
340 |
295 |
268 |
230 |
930 |
23 |
8 |
23 |
250 |
395 |
350 |
320 |
250 |
1130 |
25 |
12 |
23 |
300 |
445 |
400 |
370 |
270 |
1330 |
25 |
12 |
23 |
|
