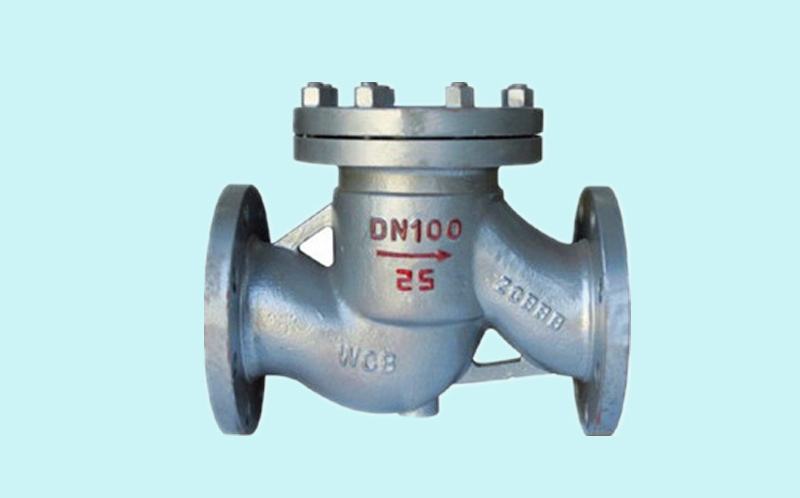

1.Specification
| Design Standard | GB/T 12236 |
| Pressure-Temperature Rating | GB/T 12224 |
| Face-Face | GB/T 12221,GB/T 15188.1 |
| Flange Dimension | GB/T 9113,JB/T 79 |
| Butt Welding Connection | GB/T 12224 |
| Calibration & Test | JB/T9092,GB/T 13927 |
Test Pressure
(MPa) |
Nominal Pressure | PN1.6 | PN2.5 | PN4.0 | PN6.4 | PN10.0 | PN16.0 |
Shell Test | 2.4 | 3.75 | 6.0 | 9.6 | 15.0 | 24.0 |
High-pressure Seal Test | 1.76 | 2.75 | 4.4 | 7.04 | 11.0 | 17.6 |
Low-pressure Seal Test | 0.6 |
2.Material of Main Accessories
NO. |
Parts Name |
Carbon Steel |
Stainless Steel |
Alloy Steel |
Low Temperature Steel |
| 1 | | Body | WCB | CF8 | WC6 | LCB |
| 2 | | Disc | WCB | CF8 | WC6 | LCB |
| 3 | | Gasket | +SS304 | +SS304 | +SS304 | +SS304 |
| 4 | | Bonnet | WCB | CF8 | WC6 | LCB |
| 5 | | Stud | 35CrMoA | OCr18Ni9(304) | 35CrMoA | OCr18Ni9(304) |
| 6 | | Nut | 35# | OCr18Ni9(304) | 35CrMoA | OCr18Ni9(304) |
| 7 | | Spring | 60S12Mn | OCr18Ni9(304) | OCr18Ni9(304) | OCr18Ni9(304) |
Note:
1.The material will be different according to operate temperature and medium.
2.The operate temperature of common internal parts material please check appendix VII.
