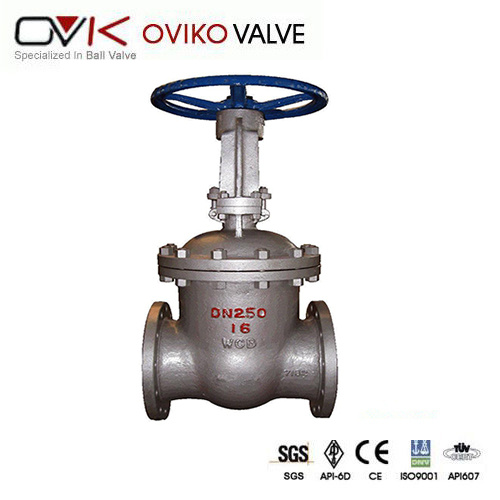

GB/T Cast Steel Wcb Flanged Hand Wheel Gate Valve

GB/T Cast Steel Wcb Flanged Hand Wheel Gate Valve
Price: US $ 20-200000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Description
  Gate valve can be used in many industries, like water industry, oil industry, liquid industry. Mostly it can be used to control the speed of the fluid or release the dreg from the pots.


  Advantages of gate valve:
  1. Small fluid resistance
  2. The torque for opening and closing is small, so it is easy to open and close.
  3. The medium flowing direction is not restricted, and it doesn't disturb flowing and reduce the pressure        of pipeline.
  4. Short length structure
  5. Good sealing performance
  6. Simple shape, good casting process, widely used.


Prod Model: OVK-150429
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Diameter: Dn10-3600
Nominal Pressure: 0.6-42.0MPa
Working Temperature: -196centidegree-1200centidegree
Certificate: Ts,CE,ISO9001
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
Actuator: Manual,Electric,etc
Pressure: Ordinary Temperature/Pressure
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.

Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.

We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
