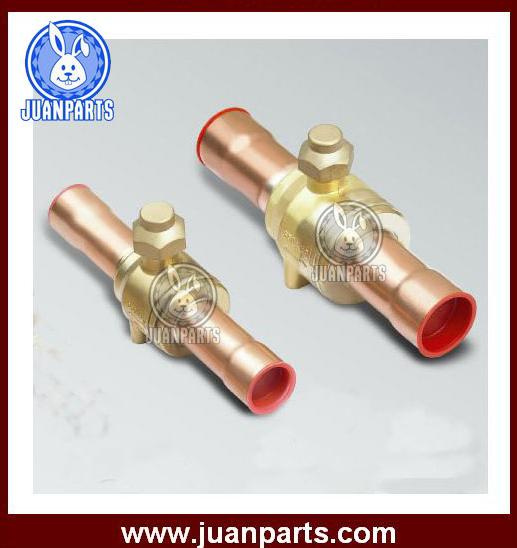

Ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow.
GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems.
GBC valves off er maximum tightness across the seat/seal.
The ball valves give maximum fl ow in the fully open position. They are designed for operation
Within a broad temperature range. GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.
The product range consists of two valve types: One with and one without access port.
Both versions can be supplied in inch or millimetre sizes from 1/4 in. To 31/8 in. (6 mm to 54mm). All valves have holes for panel mounting
|
Item No. |
Solder ODF |
O.D. |
Kv Factor(m/hr) |
|
GBC-6 |
1/4 |
14 |
1.96 |
|
GBC-10 |
3/8 |
14 |
5.68 |
|
GBC-12 |
1/2 |
14 |
10.58 |
|
GBC-16 |
5/8 |
14 |
14.11 |
|
GBC-18 |
3/4 |
19 |
20.42 |
|
GBC-22 |
7/8 |
19 |
28.17 |
|
GBC-28 |
1 1/8 |
25 |
51.95 |
|
GBC-35 |
1 3/8 |
32 |
80.89 |
|
GBC-42 |
1 5/8 |
38 |
121.07 |
|
GBC-54 |
2 1/8 |
50 |
224.96 |
|
GBC-67 |
2 5/8 |
50 |
245.78 |
|
GBC-79 |
3 1/8 |
50 |
222.52 |

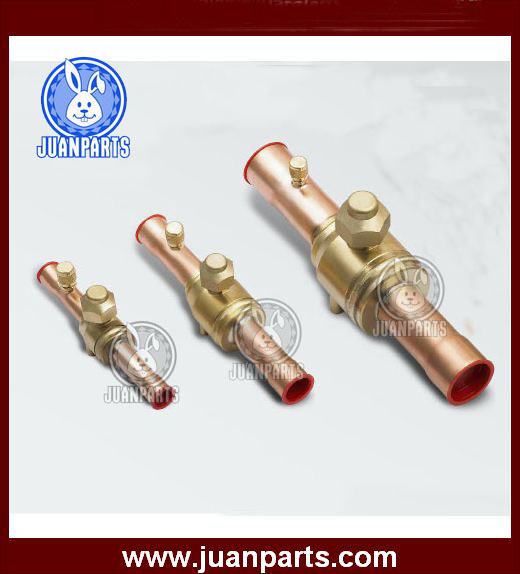

GBC series Ball Valve with access port
|
Item No. |
Solder ODF |
O.D. |
Kv Factor(m/hr) |
|
GBC-6AP |
1/4 |
14 |
1.96 |
|
GBC-10AP |
3/8 |
14 |
5.68 |
|
GBC-12AP |
1/2 |
14 |
10.58 |
|
GBC-16AP |
5/8 |
14 |
14.11 |
|
GBC-18AP |
3/4 |
19 |
20.42 |
|
GBC-22AP |
7/8 |
19 |
28.17 |
|
GBC-28AP |
1 1/8 |
25 |
51.95 |
|
GBC-35AP |
1 3/8 |
32 |
80.89 |
|
GBC-42AP |
1 5/8 |
38 |
121.07 |
|
GBC-54AP |
2 1/8 |
50 |
224.96 |
|
GBC-67AP |
2 5/8 |
50 |
245.78 |
|
GBC-79AP |
3 1/8 |
50 |
222.52 |
