| Price: | US $ 18-20/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

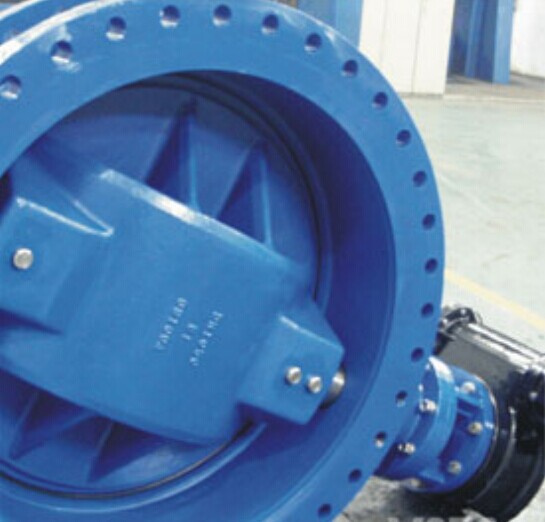

Gear Box Double Flange Butterfly Valve are with Main Features as below:
Resilient Seated Seated or Fully Lined Design
Concentric or Eccentric Structure
Wafer, Lug, Groorved, Flanged, MJ (Machnical Joint) Ends
Sizes: 3 through 96 inches
Body Style: Flanged x flanged ends
Other Body Style Options: Mechanical joint, victaulic, flanged & mechanical joint, push-on, push-on & flanged
Pressure Class: Class 150B per AWWA Standard C504
Working Pressure: 150 psig
Flanges: Flat faced and drilled in accordance with ANSI B16.1, Class 125 standards
Rubber Seat: Bonded seat-in-body
Actuation Options: Vatac hand lever, MDT manual actuator with AWWA nut, handwheel or chainwheel, Dura hydraulic or pneumatic cylinder, Vatac electric actuator
Double Flange Butterfly Valve has the advantages of Simple operation, and it is good to control the fluid media
API609 Cast Iron lining Wafer Butterfly Valve Features:
Designed and Manufactured to BSEN593 and MSS SP-67 and API 609
Suitable to ANSI 125/150, BS4504, DIN flanges
Size Ranges: NPS 2"~52"
Pressure Rating: PN10/16, ANSI125/150/300/600/900
Materials available in Iron, Steel, Stainless Steel, Duplex and Bronze, Seat Material in Both Resilient and Metal Type, Different trim materials available to suit different service conditions
Fire-safe design to API 608/API 6FD upon request
To MSS SP 01-75 On request
Operations: Lever, Worm-gear, Electric, Pneumatic and Hydra-pneumatic
| DESGN & MFT. | AWWA C504 1508 | ENDS CONNECTION | AWWA FLANGE |
| PRE-TEP. RATING | 120 CMAX | INSPECT & TEST | AWWA C-504 |
| F-F DIMENSION | AWWA C504 SHORT PTN | END CONNECTION | ASME B16.1 |
| LOGO | VATAC/OEM | FIRE SAFE DESIGN | AWWA |
| PAITING | IN/EX EPOXY 250UM MIN. | SPE. REQUIREMENTS | N.A |
| Prod Model: | D361 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 80mm-1200mm |
| Place Of Origin: | China |
| Work Pressure: | Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: | Metal Hard Sealed |
| Connection Form: | Double-Clip Type |
| Structure: | Three-Eccentric Sealing |
| Working Temperature: | Medium Temperature (',120??C |
| Application: | Household Usage |
| Seal Form: | Resilient Seated |
