Belows are the details of Gear Operated Gate Valve made by our company:
1. Summarize

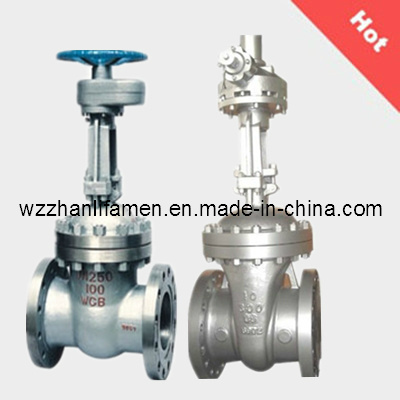

(1) Name: API Gear Operated Gate Valve
(2) Model: Z441H / Z541H
(3) Size Range: 1-1/2" - 36"
(4) Pressure/Class: 150 - 1500LB
(5) Materials: Cast Iron, Cast Steel, Stainless Steel etc.
(6) Connection Type: Thread, SW, BW, Flange etc.
(7) Suitable Tem.: -20º C - 425º C / -20º C - 550º C
(8) Standard: DIN, API, GB
Here we take API Gate Valve for example. For the others' data, please contact us.
2. Technical Specifications:
(1)Design Standard: API 600-2009
(2)Face to Face Dimensions: ANSI B16.10-2009
(3)End Flange Dimension: ANSI B 16.5-2009
(4)Test Standard: API 598-2009
2. Performance Specifications:
3. Main Parts and Materials:
4. Main Sizes and Dimensions:
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …
We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
Welcome to inquire us. We will do our best to give you the best services!
