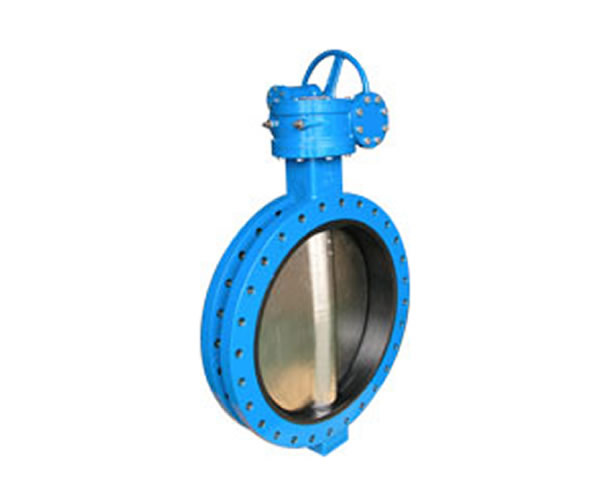

U type butterfly valve
Technical Data
Size DN40-DN1400mm
Pressure:PN0.6-2.5MPa
Design:ISO 5752 / BS 5155 / API 609
Body: Cast iron, Ductile Iron,wcb
Seat: EPDM, NBR,
Stem: Stainless Steel, Steel
Disc: Ductile Iron with Nickel Coating,Ductile Iron with Nylon Coating, Stainless Steel 304/316, Al-Bronze
Flange Connection:DIN,BS,ISO,ANSI,AS,JIS
Product Features
U type flanged body style fit between FF or RF flanges
PTFE bushing ensure the maximum shaft support and centralized alignment
360°polished disc assures positive on-off
Hard-Backed Cartridge seat
One piece shaft, pinned or splined are all available
Universal ISO 5211 mounting pad
Suitable working mediums: fresh water, sewage,air,vapor,acids,alkalis,salts, etc.
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
