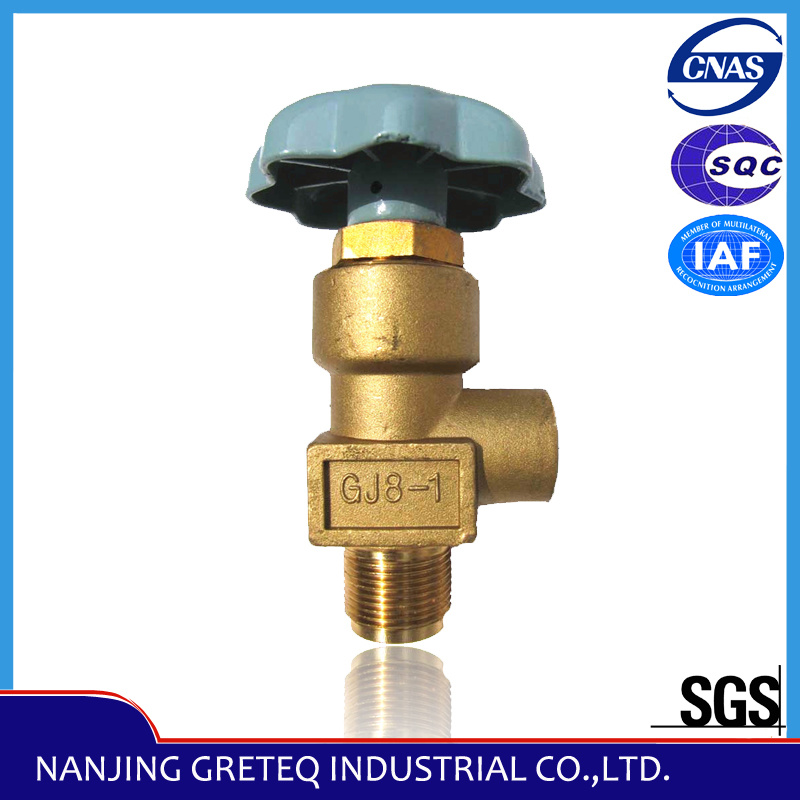

GJ8-1 Ring Angle type Stop(shuteff) Valve for Acetylene Pipe

Specification:
1)Suitable Medium:C2H2
2)Working Pressure:2.5Mpa
3)Nominal diameter:DN5mm
4)Inlet Joint thread:M22*1.5,
5)Outlet Joint thread:female thread M16*1.5

Packaging & Delivery:
Packaging Details:25sets/carton
Delivery Detail:within 15days

CERTIFICATIONS:
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012

No.	Type No.	Produce Name	Suitable Medium	PN (Mpa)	DN (mm)	Donnection Size(mm)
No.	Type No.	Produce Name	Suitable Medium	PN (Mpa)	DN (mm)	Intel	Outlet
1	GJ8-1	Brass Acetylene pipe stop (shutoff) valve	C2H2(acetylene)	2.5	5	M22x1.5	Female Thread M16X1.5
2	QJG150-4	Brass ring angle type stop (shutoff)valve for gas pipe	O2,H2,N2,Air	15	4	G1/2	Female Thread G3/4
3	QJG200-8	Brass ring angle type stop (shutoff)valve for gas pipe	O2,H2,N2,Air	20	8	G1/2	Female Thread G3/4
4	QJT30-12	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	≤3	12	Female Thread G1/2	Female Thread G1/2
5	QJT30-18	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	3	18	Female Thread G3/4	Female Thread G3/4
6	QJT150-4	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	15	4	Female Thread G1/2	Female Thread G5/8
7	QJT200-8	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	20	8	Female Thread M33x2	Female Thread M33x2
8	QJT200-10	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	20	10	Female Thread M33x2	Female Thread M33x2
9	QJT200-15	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	20	15	Female Thread G3/4	Female Thread G3/4
10	QJT200-20	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	20	20	Φ32 Solder	Φ32 Solder
11	QJT200-25	Brass thru type stop(shutoff) valve for gas pipe	O2,H2,N2,Air	20	25	Φ38 Solder	Φ38 Solder

Prod Model:	GJ8-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard:	Standard
Power:	Manual
Structure:	Shutoff
Pressure:	Medium Pressure
Material:	Brass, Brass Hpb59-1
Port Size:	Intel:M22X1.5, Outlet:Female Thread M16X1.5
Temperature Of Media:	Normal Temperature
Loading Port:	Shanghai Port
Delivery Time:	Within 16 Days

We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
