BPG 3323
Properties:
This packing consists of graphite-filled lubricated PTFE yarn. The special braiding
structure offers the benefits of low thermal expansion and excellent heat conduction.
Due to its low friction characteristics it can also withstand dry running up to a certain
limit. In addition, its pliable and dense composition allows this packing to seal
effectively with a minimum of gland pressure.
Applications:
Ideally suitable for high speed rotary pumps. It can be used as the standard packing in the
chemical industry, but also in other general industries.

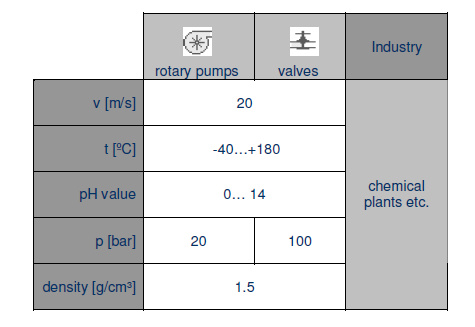

Application Parameters:
Media:
All chemicals: e.g. alkalis, solvents, bitumen, almost all acids. Exceptions: highly concentrated
nitric acid, oleum
Benefits:
Longer service life; it has the ability to run at high speeds; this packing also has low leakage
with a minimum of gland pressure.
Availability:
Standard size between 3 - 25mm (other sizes on request)
- On creel (kg), die-formed rings, ring sets and pre-cut lengths
Burgmann Sealing Materials Co., Ltd. Cixi is solely owned by German, and has over 30 years of experience in sealing manufacture. Specializing in packing, spiral wound gaskets, graphite rings and non-metallic gaskets, we also supply graphite sheets, reinforced graphite sheets and non-asbestos sheets.
With German manufacture experience, we are equipped with advanced production technologies and facilities. Having attained ISO9001 Certification, our products have been exported to more than 30 countries and regions, such as Europe, America, Southeast Asia, Africa, and the Middle East, and received a good reputation from customers.
We insist on our aim of meeting requirements of users and abide by our goal of "Putting science and technology into the first place". We honestly look forward to cooperating with you and creating long-term and mutually beneficial relationships. We welcome you to visit our company.
