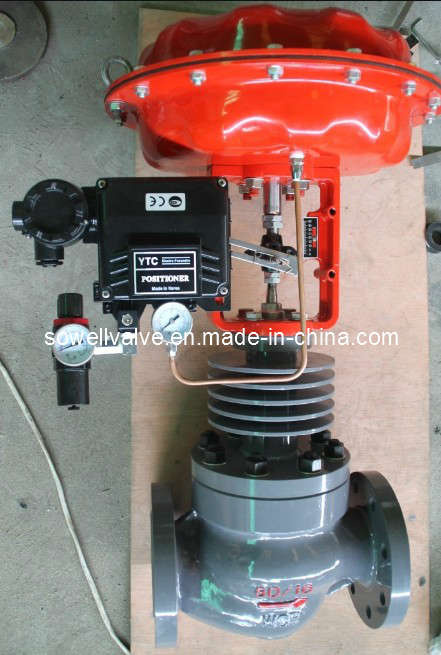

Control valve is made up of pneumatic multi spring diaphragm actuator and lower flow resistance straight single seat valve(sleeve). The single valve is connected directly with its guilding structure on the cap; With its corn is RAM structure, which is smaller and lighter than normal single seat valve and its flux is bigger than normal sleeve valve. It is widely applied in industry process and automatic controlling system.
Features:
Body type: Straight line single seat (sleeve) foundry valve S style
D N: DN20~300mm
PN: PN1.6 4.0 6.4MPa
Connecting way: Flange style JB78-59 JB/T79.2-94 concave style
Material: HT200 ZG230_450 ZG1Cr18Ni9Ti ZG0Cr18Ni12M02Ti
Back cover: Normal temperature -20~+200degree
Heat elimination type -40~+450degree
Packing: V-pattern PTFE, soft graphite, stainless steel bellows.
Nominal pressure rating: PN1.6~6.3MPa, ANSI150~600
Nominal diameter: DN40~200mm
Working temperature: Stainless steel metal seat: -20~230degrees Celsius, 20~425degrees Celsius PTFE soft seat: -20~150degrees Celsius
Flow characteristic: Approximate to equal percentage or linear
Pneumatic actuator: Single acting diaphragm
Air supply pressure: 0.2~0.35MPa
Seat type: Double seated
Material: Body: (1)WCB (2)CF8 (3)CF8M (4)CF3 (5)CF3M
Trim: (1)SS304 (2)SS316 (3)SS316L
Optional accessories: (1)Positioner: A. Imported B. Made in China
(2)Connecting flange, bolt: A. Carbon steel B. Stainless steel
Design |
ASME B16-34 |
Body Design |
Globe type with Tail piece to provide third port |
Rating |
ANSI 150 to 300 or Equivalents to BS, DIN, IS, JIS, etc |
End Connection |
Flanged - 15mm to 300mm ( 1/2" to 12" )
Screwed - 15mm to 50mm ( 1/2" to 2" ) |
Bonnet |
Standard upto 250 o C
Normalizing (Finned) betn 250 o C to 500 o C
Extended cold service-20 o C to- 200 o C
Extended Bellowseal |
Gland Packing |
Grafoil / PTFE V Rings |
Trim Designs |
Skirt Guided, Linear, Pressure Balance. |
Trim Materials |
Stainless Steel, Alloy20, Monel, Hastelloy B/C, Stellite Hard facing |
Seat Leakage |
As per FCI-70-2 (ANSI B 16.104) Class IV, V and VI (STANDARD LEAKAGE RATES ) Metal to Soft Seating - Bubble tight (Zero Leakage) |
Actuator Type |
Diaphragm, Cylinder or Electric. |
Actuator Action |
Direct / Reverse Acting. Direct acting air failure "Close" Top Port. Reverse acting air failure "Opens" Top Port |
Diaphragm |
Nitrile / Neoprene |
Spring Ranges |
3 - 15 PSIG ( 0.2 - 1.0 Kg/cm 2 )
6 - 30 PSIG ( 0.4 - 2.0 Kg/cm 2 ) |
Air Supply |
20 - 35 PSIG (1.4 - 2.5 Kg/cm 2 ) |
Air Connection |
1/ 4" or 1/ 2" NPT |
Handwheel |
Top or Side Mounted Handwheel |
