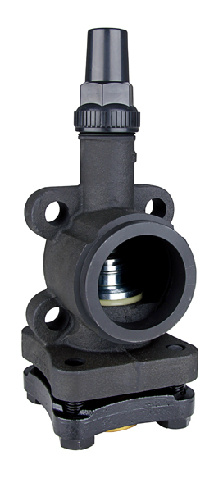

Globe Stop Valve with CE Certification (J2BS32-42/ J2BS/100-125)
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
Service valve for Bitzer semi-hermetic Compressor 1. The working air pressure: 3.0mpa, hydraulic pressure: 6.5mpa:
2. Suitable medium: R12, R22, R502, R407c, R134A, R404A, R410A rct. Refrigerants and other refrigerating oil:
3. Suitable temperature: -50° C+150° C
4. Material: Nodular cast iron(QT500)
5. Yongda models: 20-40 p
6. Material: Cast iron
7. Connecting forms: Welding
8. Nominal diameter: 70 (mm)
9. Type sealing form: Soft seal
10. Pressure environment: Normal pressure
11. Working temperature: Room temperature
12. Standard: GB
13. Flow direction: The one-way
14. Shape: Angle type
15. Types of parts and accessories, accessories (channel): Two-way
16. Applicable medium: Gas
This valve is used in any semi-hermetic refrigerationn comprssor and refrigeration system widely.
Application :

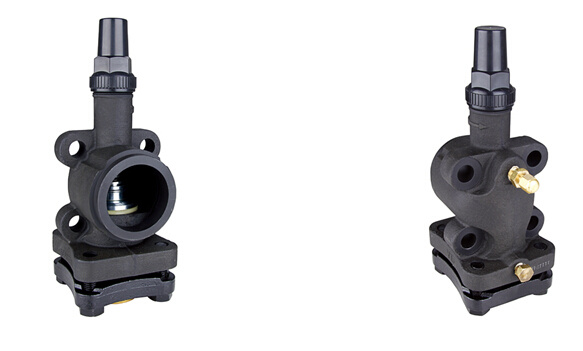

valves showed on exhibition :
|
Specification |
DN |
Test pressure |
Valve body |
Sealing ring |
joint pipe |
notice |
|
SS/406 |
φ19 |
3.0MPa |
HPb59-1 |
tetrafluoroethylene |
TP2 |
Semi-hermetic
Compressor exhaust valve and suction valve |
|
SS/407 |
φ19 |
|
SS/407A |
φ25 |
|
SS/408 |
φ25 |
|
SS/410 |
φ32 |
|
SS/410A |
φ38 |
|
SS/405 |
φ28 |
|
J4BS/28 |
φ35;φ28 |
|
J2BS/70 |
φ76 |
HT250 |
A3 |
|
J2BS/32 |
φ42 |
|
J2BS/50 |
φ54 |
| Prod Model: |
J2BS32-42/ J2BS/100-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Angle Type Globe Valve |
| Stem Thread Position: |
Inside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
GB |
