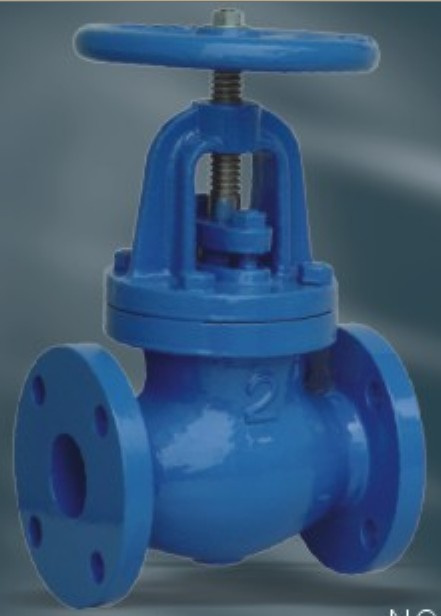

Body: Cast iron or ductile iron
Seat: Bronze or brass
Disc: Cast iron or ductile iron
Stem: Stainless
Bonnet: Cast iron
Hand wheel: Cast iron or ductile iron
Application
1. Face to face is according to BS5152
2. Flange drilled is according to ANSI BS4504
3. Nominal pressure PN10/PN16
Test
1. Working pressure PN10 PN16
Shell pressure 1.5MPa 2.4MPa
Seate pressure 1.1Mpa 1.76Mpa
|
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
L |
203 |
216 |
241 |
292 |
330 |
356 |
495 |
|
H |
273 |
298 |
311 |
352 |
375 |
425 |
514 |
|
D |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
|
C |
203 |
203 |
254 |
254 |
305 |
305 |
356 |
