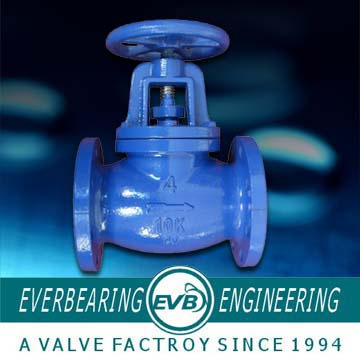

Globe Valve
Material: FC200
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: 10K
Globe Valve
|
Specification |
Application |
|
Design Standard: JIS B204 Flange Dimension: JIS B2212 Face to Face: JIS B2002 Test Standard: JIS B2003 |
Working Temp: 100 ° C Working Pressure: 10K Suitable Media: Water, Steam, Oil ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, globe valves should be left in an open position to allow complete drainage.
|
|
Materials |
|
No |
Part Name |
Materials |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Disc |
ASTM A126A(B) |
GG20 GG25 |
|
4 |
Steel Ball |
A216 WCB |
GS-C25 |
|
5 |
Packing |
Graphite |
Graphite |
|
6 |
Bonnet Gasket |
Graphite |
Graphite |
|
7 |
Stud |
A216 WCB |
GS-C25 |
|
8 |
Nut |
A216 WCB |
GS-C25 |
|
9 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
|
10 |
Stud |
A216 WCB |
GS-C25 |
|
11 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
12 |
Yoke Nut |
ASTM B36 |
Brass |
|
13 |
Screw |
A216 WCB |
GS-C25 |
|
14 |
Stem |
SS410 |
X10Cr13 |
|
15 |
Handwheel |
ASTM A126A(B) |
GG20 GG25 |
|
16 |
Washer |
A216 WCB |
GS-C25 |
|
17 |
Nut |
A216 WCB |
GS-C25 |
|
|
Dimensions( JIS B2212 Flange drilling) |
|
|
|
DN |
D |
D1 |
L |
H |
b |
n |
d |
|
50 |
155 |
120 |
203 |
300 |
20 |
4 |
19 |
|
65 |
175 |
140 |
216 |
310 |
22 |
4 |
19 |
|
80 |
185 |
150 |
241 |
355 |
24 |
8 |
19 |
|
100 |
210 |
175 |
292 |
380 |
24 |
8 |
19 |
|
125 |
250 |
210 |
330 |
430 |
26 |
8 |
23 |
|
150 |
280 |
240 |
356 |
490 |
26 |
8 |
23 |
|
200 |
330 |
290 |
495 |
630 |
26 |
12 |
23 |
|
250 |
400 |
355 |
622 |
720 |
30 |
12 |
25 |
|
300 |
445 |
400 |
698 |
900 |
32 |
16 |
25 |
|
