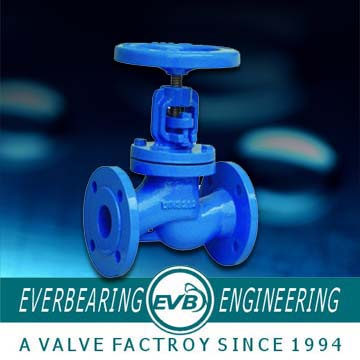

Globe Valve
Material: GG225
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
Globe Valve/Cast Iron Globe Valve/Flange Globe Valve/DIN Globe Valve
|
Application |
|
1 |
Design According to Din3202-F32 |
|
2 |
Flange End DIN2532/2533 |
|
3 |
Nominal Presure PN 10/PN16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Test |
|
Working pressure |
PN16 |
|
Shell test preesure |
15bars/24bars |
|
Seat test preesure |
11bars/17.6bars |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main Parts and Materials |
|
Number |
Part Name |
Material |
|
1 |
Body |
GG25 |
|
2 |
Seat Ring |
Stainless Steel |
|
Brass |
|
3 |
Disc Ring |
Stainless Steel |
|
Brass |
|
4 |
Disc |
GG25/Carbon Steel |
|
7 |
Stem |
SS AISI 420 |
|
9 |
Bonnet Gasket |
Graphite With Soft Steel |
|
10 |
Bonnet |
GG25 |
|
11 |
Packing |
Graphite |
|
|
|
|
|
|
|
|
|
Main Dimensions |
|
Norminal diameter |
L |
D |
D1 |
D2 |
n-d |
H |
|
50 |
230 |
165 |
125 |
102 |
4-Φ 18 |
290 |
|
65 |
290 |
185 |
145 |
122 |
4-Φ 18 |
320 |
|
80 |
310 |
200 |
160 |
138 |
8-Φ 18 |
365 |
|
100 |
350 |
220 |
180 |
158 |
8-Φ 18 |
410 |
|
125 |
400 |
250 |
210 |
188 |
8-Φ 18 |
460 |
|
150 |
480 |
285 |
240 |
212 |
4-Φ 22 |
525 |
|
200 |
600 |
340 |
295 |
268 |
12-Φ 22 |
685 |
|
250 |
730 |
405 |
355 |
320 |
12-Φ 27 |
830 |
|
300 |
850 |
460 |
410 |
378 |
12-Φ 27 |
925 |
Everbearing Engineering Co., Ltd. is a manufacturer of various valves with well-equipped testing equipment and strong technical force.
Since 1994, We have passed API-Q1, and gotten the ISO 9001: 2000 certification. And after years of experience in supplying valves abroad, Everbearing has been recognized as a skilled and credible supplier with most-trusted, highest-quality products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water, oil, gas and other industries.
Sincerely, we hope to make Everbearing brand as a famous brand with domestic and international customers. And we do our best to improve Everbearing as a high-class valve manufacturer.
We are looking forward to establishing relationships with you in the near future.
