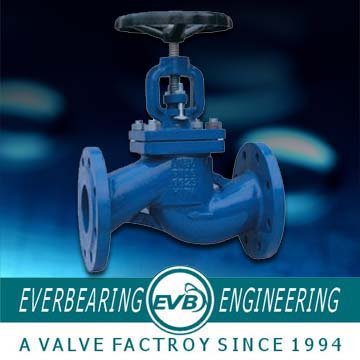

Globe Valve
Material: GG25
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
Valve, globe valve, cast iron DIN globe valve.
|
Specification(ductile iron DIN globe valve) |
Application(cast iron DIN globe valve) |
|
Design and manufacture: DIN3356 Flange dimensions: DIN2533 Face to Face: DIN3202 F1 |
Working Temp: 100 ° C Working Pressure: PN10 or PN16 Suitable Media: Water, Steam, Oil ect. Not recommended for Steam Service. Caution: FREEZING WEATHER PRECAUTION - Subsequent to testing a piping system, globe valves should be left in an open position to allow complete drainage.
|
|
Materials(cast iron DIN globe valve) |
|
No |
Part Name |
Materials |
|
1 |
Body |
ASTM A126A(B) |
GG20 GG25 |
|
2 |
Seat Ring |
ASTM B36/B62, SS410 |
Brass, Bronze |
|
3 |
Disc |
ASTM A126A(B) |
GG20 GG25 |
|
4 |
Packing |
Graphite |
Graphite |
|
5 |
Bonnet Gasket |
Graphite |
Graphite |
|
6 |
Gland |
ASTM A126A(B) |
GG20 GG25 |
|
7 |
Bonnet |
ASTM A126A(B) |
GG20 GG25 |
|
8 |
Yoke Nut |
ASTM B36 |
Brass |
|
9 |
Stem |
SS410 |
X10Cr13 |
|
10 |
Handwheel |
ASTM A126A(B) |
GG20 GG25 |
|
11 |
Washer |
A216 WCB |
GS-C25 |
|
12 |
Nut |
A216 WCB |
GS-C25 |
|
13 |
Washer |
A216 WCB |
GS-C25 |
|
14 |
Stud |
A216 WCB |
GS-C25 |
|
15 |
Stud |
A216 WCB |
GS-C25 |
|
|
Dimensions(DIN2533 Flange drilling) |
|
|
|
DN |
D |
D1 |
D2 |
L |
H |
b |
n |
d |
|
15 |
95 |
65 |
45 |
130 |
185 |
12 |
4 |
14 |
|
20 |
105 |
75 |
58 |
150 |
195 |
14 |
4 |
14 |
|
25 |
115 |
85 |
68 |
160 |
225 |
14 |
4 |
14 |
|
32 |
140 |
100 |
78 |
180 |
235 |
16 |
4 |
18 |
|
40 |
150 |
110 |
88 |
200 |
260 |
15 |
4 |
18 |
|
50 |
165 |
125 |
102 |
230 |
305 |
17 |
4 |
18 |
|
65 |
185 |
145 |
122 |
290 |
310 |
17 |
4 |
18 |
|
80 |
200 |
160 |
138 |
310 |
355 |
19 |
8 |
18 |
|
100 |
220 |
180 |
158 |
350 |
380 |
21 |
8 |
18 |
|
125 |
250 |
210 |
188 |
400 |
430 |
23 |
8 |
18 |
|
150 |
285 |
240 |
212 |
480 |
490 |
23 |
8 |
23 |
|
200 |
340 |
295 |
268 |
600 |
630 |
27 |
12 |
23 |
|
250 |
405 |
355 |
320 |
730 |
720 |
29 |
12 |
27 |
|
300 |
460 |
410 |
378 |
850 |
900 |
29 |
12 |
27 |
|
