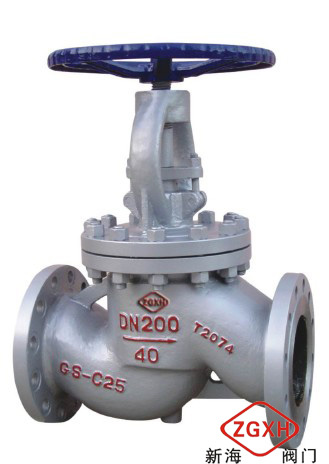

Globe Valve (J41)
| Price: |
Negotiable |
| Trade Terms: |
by air, by sea |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Structure: Globe
Pressure: Medium Pressure
Material: Casting
Temperature of Media: Normal Temperature
Media: Water
Specifications:
1) Sizes: DN15~300
2) Pressure Rating: 1.6Mpa~16.0Mpa
3) Suitable temperature: -28 ~ 425 Deg. C
4) Suitable medium: Water, Steam, Oil, Oil Vapor, Gas
5) Body material: WCB, CF8, CF8m, CF3, CF3m, F11, F22
6) Connection: FF, RF, RTJ
Standards:
A) Design and Manufacture: BS EN 558-1, BS 1873
B) Face to Face and end to end: DIN3202, BS EN 1092-1
C) Flange End dimensions: DIN2543, DIN2544, DIN2545, DIN2546,
D) IN2547, DIN2548
E) Inspection and test: DIN3230
|
1-Body Material* |
GS-C25+satellite Cr13+GS-C25 1.4308(G-X6CrNi18 9) 1.4408 |
|
2-Disc* |
1.4308(G-X6CrNi18 9) 1.4408 GS-C25+stellite GS-C25+Cr13 |
|
3-Stem* |
A182-F6a A182-F304 |
|
4-Nut* |
A194-8 A194 2H |
|
5-Bolt* |
A193-B7 A193-B8 |
|
6-Gasket* |
Stainless steel+ graphite Reinforced polytetrafluoroethylene PTFE+ Stainless steel |
|
7-Bonnet* |
Cr13+GS-C25 1.4308(G-X6CrNi18 9) 1.4408 |
|
8-Packing* |
Graphite PTFE |
|
9-Gland* |
A182-F304 A182-F6a |
|
10-Gland flange* |
1.4308(G-X6CrNi18 9) GS-C25 |
|
11-Stem nut* |
Copper and copper alloy A439 D2 |
|
12-Hand wheel* |
Ductile iron WCB customize |
|
Design Standard* |
BS 1873 BS EN 558-1 |
|
Connection Standard* |
DIN 2543 DIN 2544 DIN 2545 DIN 2546 DIN 2547 DIN 2548 |
|
Test Standard* |
DIN 3230 |
|
Face to Face* |
DIN 3202 DIN 3202 F1 DIN 3202 F2 EN 1092 |
| Prod Model: |
J41 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Zhejiang Xinhai Valve Manufacturing Co., Ltd, located in Oubei, Wenzhou city, was established in 1986. with more than 20 years experience, our company now becomes a professional valve manufacturer by developing, manufacturing, marketing and servicing. And it covers an area of 10, 000 square meters and has two subsidiary factories.
Our product includes gate, check, globe, ball, butterfly, plug, strainer and other valve. The valves are manufactured according to ANSI, API, DIN, GOST, BS, JIS, Chinese GB standers and the customers' requirements. These products have been installed throughout the world, having a wide variety of applications in the Gas, Oil, Refining, Chemical, Marine, Power Generation and Pipeline Transmission Industries.
Pressure range: Class125-Class2500, PN6-PN420
Size range: NPS1/2-NPS48
Operation type: Manual, gearbox, chain wheel, pneumatic, electronic, etc
Connection End: Flanged, BW, SW, NPT, wafertype, etc.
Materials(casting): WCB, WCC, LCB, LCC, LC1-3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, Monel, etc.
In order to introduce the international quality management system, Xinhai have got the approval o ISO 9001, API-6D, CE and Chinese TSG certification. Also, Xinhai established a multi-functionl phys-chemical lab to futher supervise the quelity time to time and fittde out spectrum analyzer, portable spectrograph(PMI), impact tester, hardness meter, tensile tester, thickness meter, magnetic particle tester, gugitive emission tester and NDE testing equipment.
The main target of Xinhai is to offer a high quality products and service to ensure the highest degree of satisfication and fidelity of our customers. Welcome the new and old customers to cooperate with Xinhai to explore wider global markets and create more brilliant future together!
