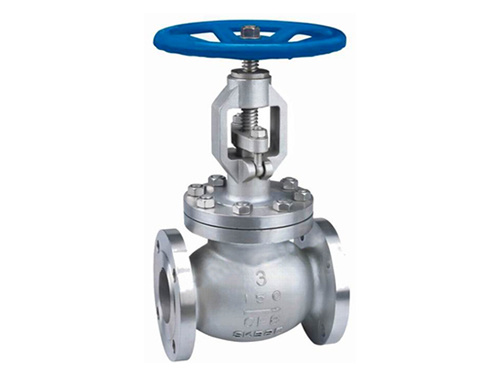

Globe Valve (J41H)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Applicable standards:
Steel glboe valves, BS 1873 / API 600
Steel valves, ASME B16.34
Face to face, ASME B16.10
Flanges end, ASME B16.5
Buttwelding ends, ASME B16.25
Inspection and test, API 598
Design description:
Straight patteren body design
OS & Y,outside screw and yoke
BB,Bolted bonnet
Yoke intergral with bonnet
Rising stem and handwheel
Loose disc,choice of plug or ball
Renewable seat ring
Impact handwheel for 10" & above
Horizontal servece
Flanged or buttwelding ends
Available with bg operator
Globe Valve Series
A globe valve is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.
Globe Valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close (or shut) the valve. The plug is also called a disc. In globe valves, the plug is connected to a stem which is operated by screw action in manual valves. Typically, automated valves use sliding stems. Automated globe valves have a smooth stem rather than threaded and are opened and closed by an actuator assembly. When a globe valve is manually operated, the stem is turned by a hand wheel.
Globe valves are used for applications requiring throttling and frequent operation. For example, globe valves or valves with a similar mechanism may be used as sampling valves, which are normally shut except when liquid samples are being taken. Since the baffle restricts flow, they're not recommended where full, unobstructed flow is required
| Prod Model: |
J41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"-42" |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
JIS |
| Application: |
Lining Fluorine Valve |
KST Technology Development limited, a valve manufacturer, located at China famous Pump&Valve Town_Oubei, WenZhou, Our factory specialized in all kinds of industrial valve, which according to API, ASME, EN, ISO, JIS, BS, GOST&GB standards, The product includes Gate valves, ball valves, check valves, Globe valves, Plug valve, Butterfly valves, safety valves, Strainer, and other special valves that are applied broadly in petroleum, chemical, metallurgical and power station industries. And according to the customer's requirements of various types of special standards to design and product.
Of course, our factory consistent confirmed international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, southeast Asia, Product quality and service reliability are essential to the success of our business, we strictly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customers fully satisfaction.
Valve products details:
Products range: gate valve, check valve, globe valve, check valve, ball valves, and butterfly valves, strainers etc.
Pressure range: Class 150~Class 2500; 1.0MPa~42.0 MPa
Size range: NPS1/2"~NPS48" DN15~DN1200
Temperature: -196~649 (-320~1200)
Connection End: RF, BW, SW, NPT, Wafer type etc.
Materials(Casting): WCB, WCC, LCB, LCC, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC6, WC5, WC9, GR4A. etc
Materials(forging): A105, LF1, LF2, F11, F22, F5, F304L, F316, F316L, F316H, F321, F51. etc
According to the different project and different medium, we effectively meet customer's requirments with RT, UT, MT, PT test standard, the remarkable quality and service are the KST-Techv person's forever pursue
