Structure of Cl 150, 300, 600 Lb Cast Steel Globe ValvesNo. Parts
Features
Outside Screw and Yoke (OS & Y), Rising Stem
Bolted Bonnet
Conic Disc
Extended Bonnet for Cryogenic Services
Impact hand wheel optional
Gear Optional
Specifications
Design: ASME B16.34/BS 1873
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75
Materials
Cast steel globe valve
1 Body ASTM A216 GR. WCB
2 Seat Ring ASTM A105 + Stellite Faced
3 Disc ASTM A105 + 13Cr Faced
4 Disc Thrust Plate ASTM A276 Type 420
5 Disc Nut ASTM A276 Type 410
6 Stem ASTM A182 GR. F6
7 Bonnet Bolt Nuts ASTM A194 GR. 2H
8 Bonnet Bolts ASTM A193 GR. B7
9 Gasket Soft Iron + Graphite
10 Backseat Bushing ASTM A276 Type 410
11 Stem Packing Braided Graphite & Die formed Graphite Ring
12 Bonnet ASTM A216 GR. WCB
13 Eyebolt Pins Carbon Steel
14 Gland ASTM A276 Type 410
15 Gland Flange ASTM A216 GR. WCB
16 Gland Eye Bolts ASTM A307 GR. B
17 Eyebolt Nuts ASTM A194 GR. 2H
18 Yoke Bush ASTM A439 GR. D-2
19 Screw Carbon Steel
20 Hand Wheel Ductile Iron
21 Hand Wheel Nut ASTM A194 GR. 2H
22 Washer Carbon Steel
23 Yoke ASTM A216 GR. WCB
24 Yoke Pan Bolt Nuts ASTM A194 GR. 2H
25 Yoke Pan Bolt ASTM A193 GR. B7
26 Bearing Steel
27 Lantern Ring On Request ASTM A276 Type 410

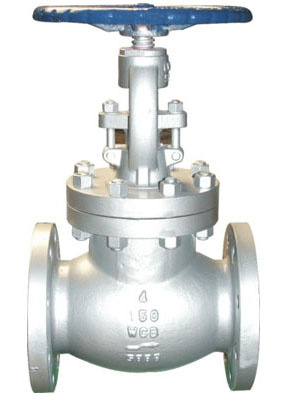

Cast steel globe valve
