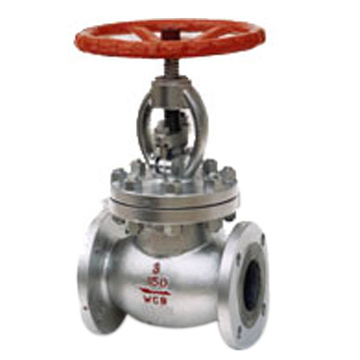

Cast Steel Globe Valve
Construction and features: Bolted Bonnet, Pressure seal bonnet, Plug type disc, Conical type seat disc, Flat seat type disc, Angle pattern, Oblique Y pattern, Stop and check.
Normal diameter or bore: NPS 2"~NPS 28", DN50~DN700, 50A~600A.
Normal pressure or rating: Class 150~Class 2500, JIS 10K~30K, PN 10~PN 160.
Material: WCB, WCC, WC6, WC9, WC5, C12, LCB, CF8, CF3, CF3M, CF8M.
Design & manufacture: API 602, BS 1873, ASME B16.34, BFCI 70-2, NACE MR0175.
Face to face dimension: ASME B16.10, ISO 5752, BS EN 558, BS 12982, JIS B2002.
Connection ends: ASME B16.5, ASME B16.47, API 605, MSS SP-44, JIS B2220, ISO 7005-1, BS EN 1092, BS 12627, ASME B16.25,
Testing & inspection: API 598, BS 12569, MSS SP-61, ISO 5208.
Operation type: Manual, Gear, Pneumatic, Electric.
Applicable temperature: -196oC~650oC
Forged Steel Globe Valves
Construction and features: Bolted Bonnet, Pressure seal bonnet, Plug type disc, Conical type seat disc, Flat seat type disc, Angle pattern, oblique Y pattern,
Normal diameter or bore: NPS 1/2"~NPS 2", DN13~DN50.
Normal pressure or rating: Class 150~Class 2500, PN 10~PN 160.
Material: A105, A182 F316, F304, F316L, F304L, F11, F9, F22, A350 LF2.
Design & manufacture: API 602, BS 1873, ASME B16.34, BFCI 70-2, NACE MR0175.
Face to face dimension: ASME B16.10, ISO 5752, BS EN 558, BS 12982, JIS B2002.
Connection ends: ASME B16.5, JIS B2220, ISO 7005-1, BS EN 1092, BS 12627, ASME B16.25,
Testing & inspection: API 598, BS 12569, MSS SP-61, ISO 5208.
Operation type: Manual, Pneumatic, Electric.
Applicable temperature: -196oC~650oC
LLV VALVE, a famous specialized manufacture factory in wenzhou China! Our products are highly recognized\competitive price and trusted by users for our distinctive workmanship. There are many large valve groups to purchase our valves to sell to other buyers. We have two factory: Mainly manufactures Ball Valve\Check Valve\Gate Valve\Globe Valve\Butterfly Valve\Plug Valve etc. It is so pleasure to mail you with a keen desire to do business with you.
We would supply optimal quality products, competitive price for you. All's Well That Ends Well. Hope on this chance as a stepping-stone, we will give our best shot to cooperate with you.
