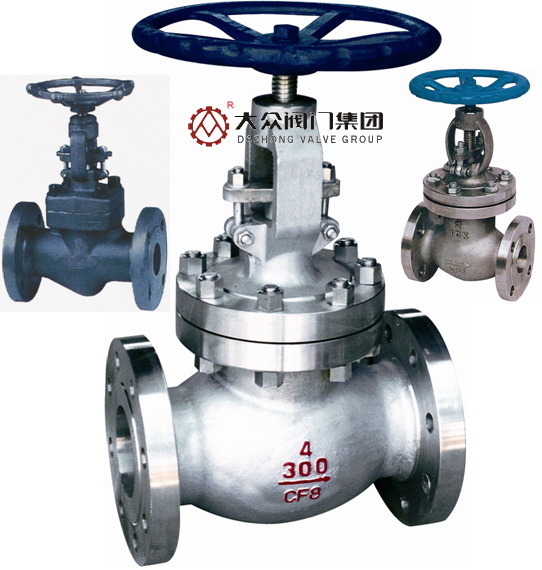

API Globe Valve
Design Feature:
Low Emission Control Threaded Seat or Welded Seat Plug Oisc
Optional Impact Hand Wheel
Product Range:
Size: DN50-DN1000
Rating: Class150-Class2500
Body Material: WCB, A351CF8, CF8M, CF3, CF3M,
A217 WC6, WC9, A352 LCB, LCC and etc.
Trim Material: As per appliable codes
Actuation: Handwheel, Gear, Motor, Pnematic, Hydraulic and etc.
Technical Specifications:
Design & Manufacture: API602, API600, API603, B51873 and etc.
End Connection: AN51 B16.10
Pressure Temperature Rating: AN51 B16.34
Face To Face: ANSI B16.10
Flange Dimension: ANSI B16.5, ASM1 B16.47
Butt Welded Ends: ANSI B16.25
Inspection & Test: API598
1. DaZhong Valve Group has been one of the best valve manufactures of China, which focus on this field for more than 20 years, totally covers an area 180 thousand square meters.
2. Main products:
High-temperature / high-pressure valves
Power station valves
Oil /gas valves
Marine valves
Water supply / Drainage valves
(Gate valve, Check valve, Globe valves, ball valves, control valves, etc)
3. Advantages:
A. Strict Quality Assurance, Quality Control-CE, API, ISO Certified
B. Standard an Custom Designed products
C. Rigid Program for on-time Delivery
D. Best services to our customers
