Globle Valve

Price:	US $ 50-50000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

B3 Valve Limited

Showroom Product Company Profile

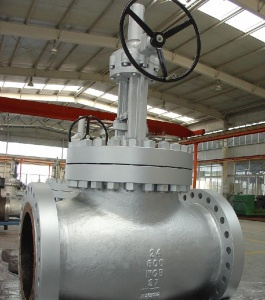

B3 cast steel globe valve are widely used in the industries of oil, chemical, medicine-made, fertilizer, electrical power, etc. Seat seal surface overlaid with wearing resistant hardened alloy to be matched with disc seal surface; the stem is specially treated to ensure its strength, rigidity, corrosion resistance and abrasion resistance. B3 globe valve is with reliable seal, safe use and easy operation. Valves are available in a complete range of body/bonnet materials and trims, which are widely used for the medium of water, steam, oil product, nitric acid, acetic acid, oxygenation, etc.

Applicable Standard

Design Standard:      BS 1873, ASME B16.34, DIN3356
Face to Face:       ASME B16.10, EN 558, DIN 3202
End Flange:             ASME B16.5, DIN 2501
Buttwelding Ends:    ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230

Products Range

Size:                     2" ~ 24"(DN50 ~ DN600)
Rating:                 ANSI 150lb ~ 1500lb
Body Materials:     Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

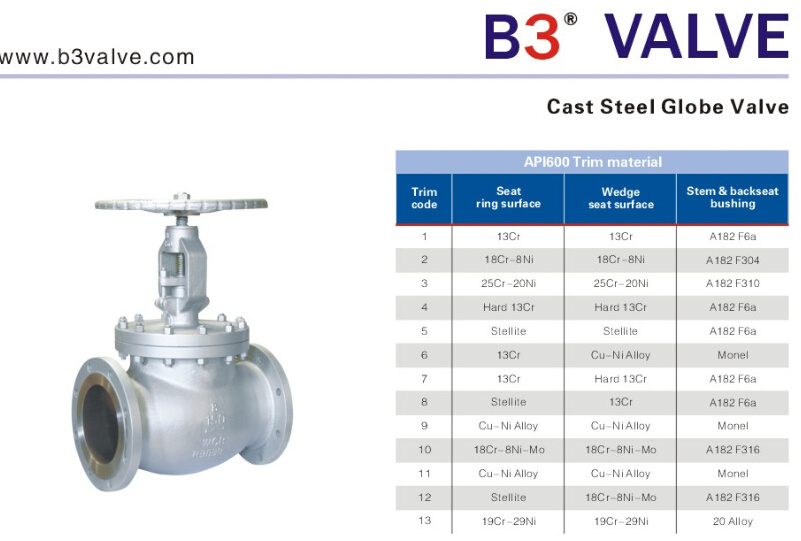

Trim:                     Per API 600
Operation:            Handwheel, Gear, Electric, Pneumatic, Hydraulic

Design Features

Straight pattern body design
OS&Y, outside screw and yoke
Tapered, globe, or plug disc
Renewable or welded seat
Bolted bonnet, back seal structure
Impact handwheel for 10" and above
Extended stem design for low temperature
ISO top flange for Bare stem globe valve

Prod Model:	B3-J4-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2"~24"
Structure:	Through Way Globe Valve
Stem Thread Position:	Outside Screw Stem Globe Valve
Standard:	JIS
Application:	Bellows Globe Valve
Actuator:	Handwheel,Gear,Actuator
Material:	Wcb,Lcb,Ss,Wc6,Alloy Steel
Sealing Form:	Metal

B3 VALVE Group Company is a leading manufacturer of industrial valves in China. All products are designed and manufactured completely as per international standards and selling them well in global markets. Today, more than 90% of our valves are exported to Western European countries, North America, Japan, Middle East of Asia, Australia, etc, and widely used in the fields as Oil & Gas, Refinery, Chemical and Petrochemical, Power Generation, Water and waste water treatment industrial, etc.

We keep in mind that for valves, quality is always the most important. In order to make sure that our customers receive good quality products, we have established strict quality control systems. Now our factories are certified by ISO9001, API6D, CE, AZ, etc. As castings/forgings are the key point for valves quality, all our subcontracted foundries/forging plants are also CE certified and pre-audited to be approved by our own inspectors.

Nowadays, B3 VALVE has over 30 quality control engineers and more than 200 skilled workers. All valves are produced as per relevant international standards. We have labs for material chemical composition analysis and quality examination equipments, such as RT, UT, MT, PT, Fire-safe test etc to guarantee all material tests and each valve should be pressure tested to be satisfactory before delivery. Material test report and pressure test report as per EN 10204 3.1. B will be supplied with our valves.

Concerning quality guarantee, our usual guarantee period is 18 months from delivery date, we can guarantee that our valve will work well in their life circle and we will be responsible for any valves we sold. Our aim is to produce "zero leakage" and "long reliable service life" valves to minimum the "Total Costs".

We always devote to provide the first class valve product and services of fine character and high ratio of performance-price for the current industry. We also know we need to have a whole set of strong and high effective quality management system in order to assure the high character of the products, meanwhile we make solemn quality promises to all of our products with high responsible attitude, ensure its products to be in compliance with international and area relative product standards, meet the requirements of the current industry.

So all our valve products are designed strictly according to the international newest product standards and continuously improve and upgrade designing ideal, manufacturing process, quality management level in order to realize the quality promises and always make B3 VALVE to be the first class valve manufacturer and solution provider both domestically and abroad.
