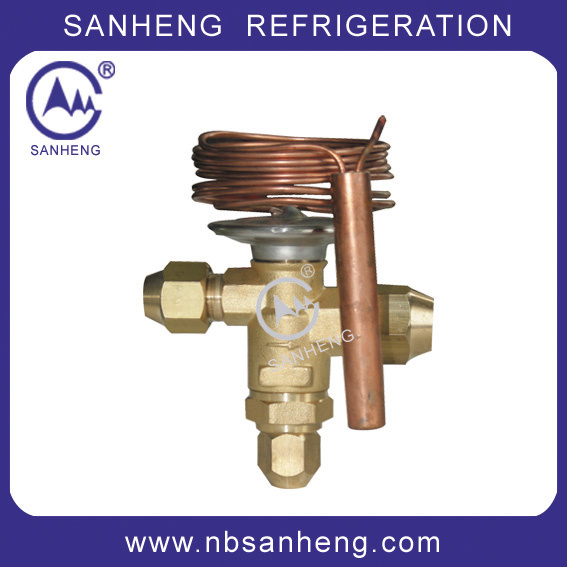

NRF/NRFE thermal expansion valve are integrated valves for freezing, air conditioning, commercial refrigeration and transportation A/C and refrigeration.
Specifications
Thermal Expansion Valve Feature:
1. Big refrigerating capacity could reach to 19 Tons
2. Wide range of evaporating temperature
A wide type of thermal expansion valve form Sanheng Refrigeration Manufacturer
Product Introduction
SHTDE(B) Series thermal expansion valve, which adopts the top class technic, is used for air-conditioner system, heat pump, auto air-conditioner, chiller, and traditional refrigeration system.
It is a throughway valve and is solder connected with refrigeration system.
SHTDE: One-way outfall type
Have K, AC and N series for different evaporating temperature range
Suited for R22, R134a and R407C
Packaging & Delivery
Packaging Details: Each product packed in single box, then pack in big carton box.
Delivery Detail: 20-25 Days
| Model | Equalization | Connection Type | Connection Inlet × Outlet | Equalization connection | Capillary Length(m) |
| inch | mm |
| SNRF-3 | Internal | SAE Flare | 3/8" × 1/2" | 10× 12 | 1/4" SAE (6mm) | 1.5 |
| SNRFE-3 | Externa |
| SNRF-5 | Internal | 3/8" × 5/8" | 10× 16 |
| SNRFE-5 | External |
| SNRF-7.5 | Internal | 1/2" × 5/8" | 12× 16 |
| SNRFE-7.5 | Externa |
| SNRF-10 | Internal |
| SNRFE-10 | External |
| SNRF-12 | Internal |
| SNRFE-12 | External |
Ordering Code
| Connection Type | Equalization | R22 | R134A | R407C | R404A/R507 | R410A |
| SAE Flare | Internal | SNRF-H | SNRF-M | SNRF-N | SNRF-S | SNRF-Z |
| Externa | SNRFE-H | SNRFE-M | SNRFE-N | SNRFE-S | SNRFE-Z |
Nominal Refrigerating Capacity
| Model | R22 | R134A | R407C | R404A/R507 |
| TR | KW | TR | KW | TR | KW | TR | KW |
| SNRF | 3 | 10.56 | 3 | 10.56 | 5 | 17.6 | 3.5 | 12.32 |
| SNRFE |
| SNRF | 5 | 17.60 | 4 | 12.32 | 6 | 21.12 | 4 | 14.08 |
| SNRFE |
| SNRF | 7.5 | 26.40 | 5.5 | 19.36 | 7.5 | 26.40 | 5 | 17.60 |
| SNREF |
| SNRF | 10 | 35.20 | 7.5 | 26.40 | 10 | 35.20 | 7 | 24.64 |
| SNRFE |
| SNRF | 12 | 42.24 | 9 | 31.68 | 12 | 142.24 | 8.5 | 29.92 |
| SNRFE |
