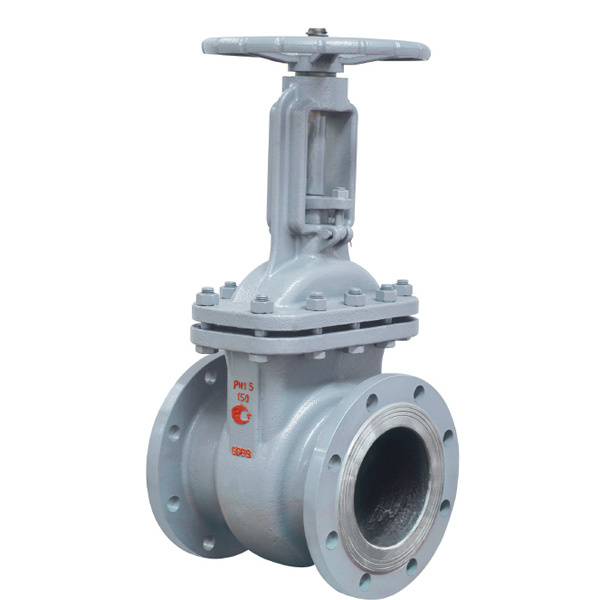

GOST Cast Steel Rising Stem Gate Valve with ISO9001

Price:	US $ 42.96-271.44/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	15/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shijiazhuang Guang Man Long Valve Co., Ltd.

Showroom Product Company Profile

Cast Steel Flanged Cuniform Gate Valve

Usage : These valves are used in various pipelines , which mogutbyt only or fully open or fully closed .

Main parts and materials :
1 .Valve body & Bonnet : Steel
2 . Wedge : steel
3 . Stem : Steel
4 . Yoke nut : Ductile iron

Function and specification :
1 . Nominal pressure(MPa) : 1.6
2 . Testing pressure :
(1) . Strength(Water)(MPa) : 2.4
(2) . Enclose(Water)(MPa) : 1.8
3 . Suitable temperature(ºC) : ≤425
4 . Suitable medium : Water , Vapour , Oil

PN 1.6 Mpa

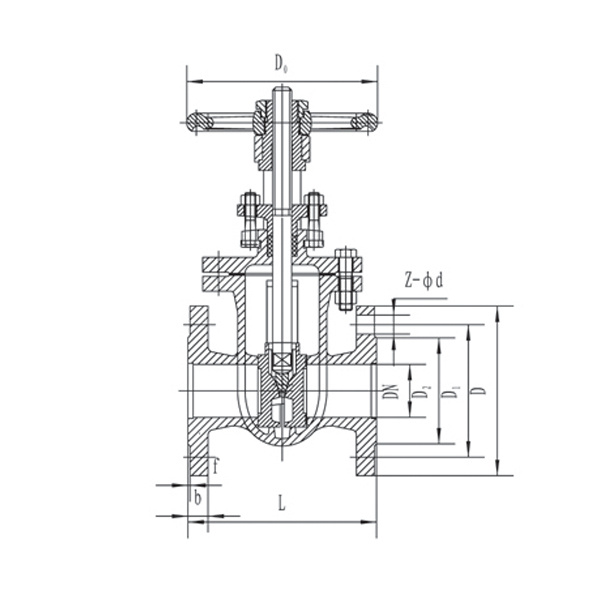

DN	L(RF)	L(BW)	D	D1	D2	f	b	Z-Φd	A	B	H	W
50	250	250	165	125	99	2	20	4-18	60	52	355	200
65	270	270	185	145	118	2	20	4-48	75	63	376	200
80	280	280	200	160	132	2	20	8-18	91	78	435	280
100	300	300	220	180	156	2	22	8-18	117	102	502	300
125	325	325	250	210	184	2	22	8-18	144	128	615	320
150	350	350	285	240	211	2	24	8-22	172	154	675	360
200	400	400	340	295	266	2	24	12-22	223	203	820	400
250	450	450	405	355	319	2	26	12-26	278	255	970	450
300	500	500	460	410	370	2	28	12-26	329	305	1145	500
350	550	550	520	470	429	2	30	16-26	362	337	1280	550
400	600	600	580	525	480	2	32	16-30	413	387	1451	600
450	650	650	640	585	548	2	40	20-30	464	438	1545	650
500	700	700	715	650	609	2	44	20-33	516	489	1678	700
600	800	800	840	770	720	2	54	20-36	619	591	1875	800
700	900	900	910	840	794	5	40	24-36	721	695	2085	900
800	1000	1000	1025	950	901	5	42	24-39	825	797	2405	950
900	1100	1100	1125	1050	1001	5	44	28-39	927	899	2950	1000
1000	1200	1200	1255	1170	1112	5	46	28-42	/	/	3244	1000

Prod Model:	Z44H-16C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	50-200mm
Certification:	GOST Ios9001
Material:	Carbon Steel
Connection Form:	Flange
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Outside Gate Valve
Application:	Water Industrial Usage
Standard:	GOST
