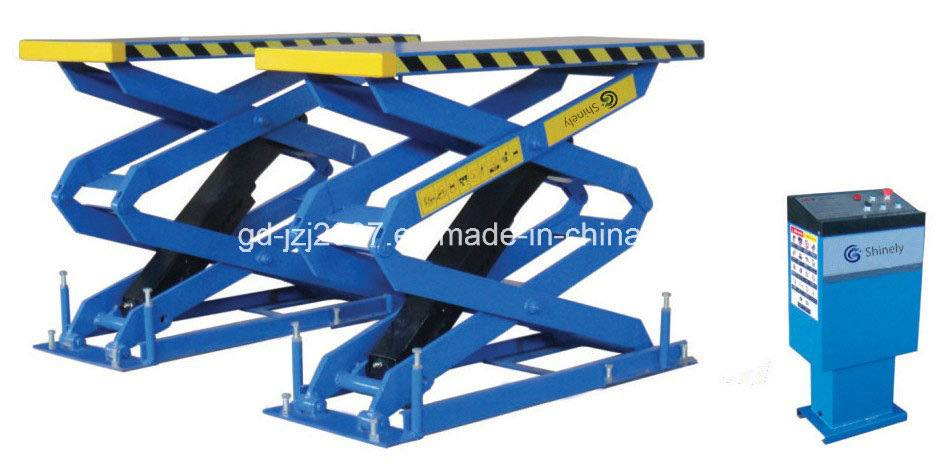

SY-300B Scissor lift
The full rise small scissor lift is applicable to lifting, detecting, repair and maintenance of various cars and other small vehicles
This lift adopts hidden flat-plate structure, which only takes up little room. And it is equipped with imported Italian hydraulic pump station
It is with mechanical dual-gear safety-claw lock and hydraulic lock bringing about double safety, which will automatically open when lowering
It is of good quality, safe and reliable. It will run synchronously and smoothly, more convenient for both tire changing and chassis maintenance
It implements hidden-underground design and is equipped with anti foot-crush alarm device
It functions with 24V electric control box and 24V limit switch
It uses pneumatic-driven lock device, anti-crack valve and imported Italian ball valve as its standard components
The elongated track device can make the lift available for long vehicles
Technical data
| Lifting capacity | 6612Ibs/3000kg |
| Lifting height | 79"/2000mm |
| Min height | 13"/340mm |
| Platform length | 60"/1530mm |
| Extensible length | 9"/216mm |
| Platform width | 22"/550mm |
| Motor voltage | 220V or 380V |
| Frequency | 50Hz or 60Hz |
| Phase | 1ph or 3ph |
| Lifting time | 40seconds |
![]()
