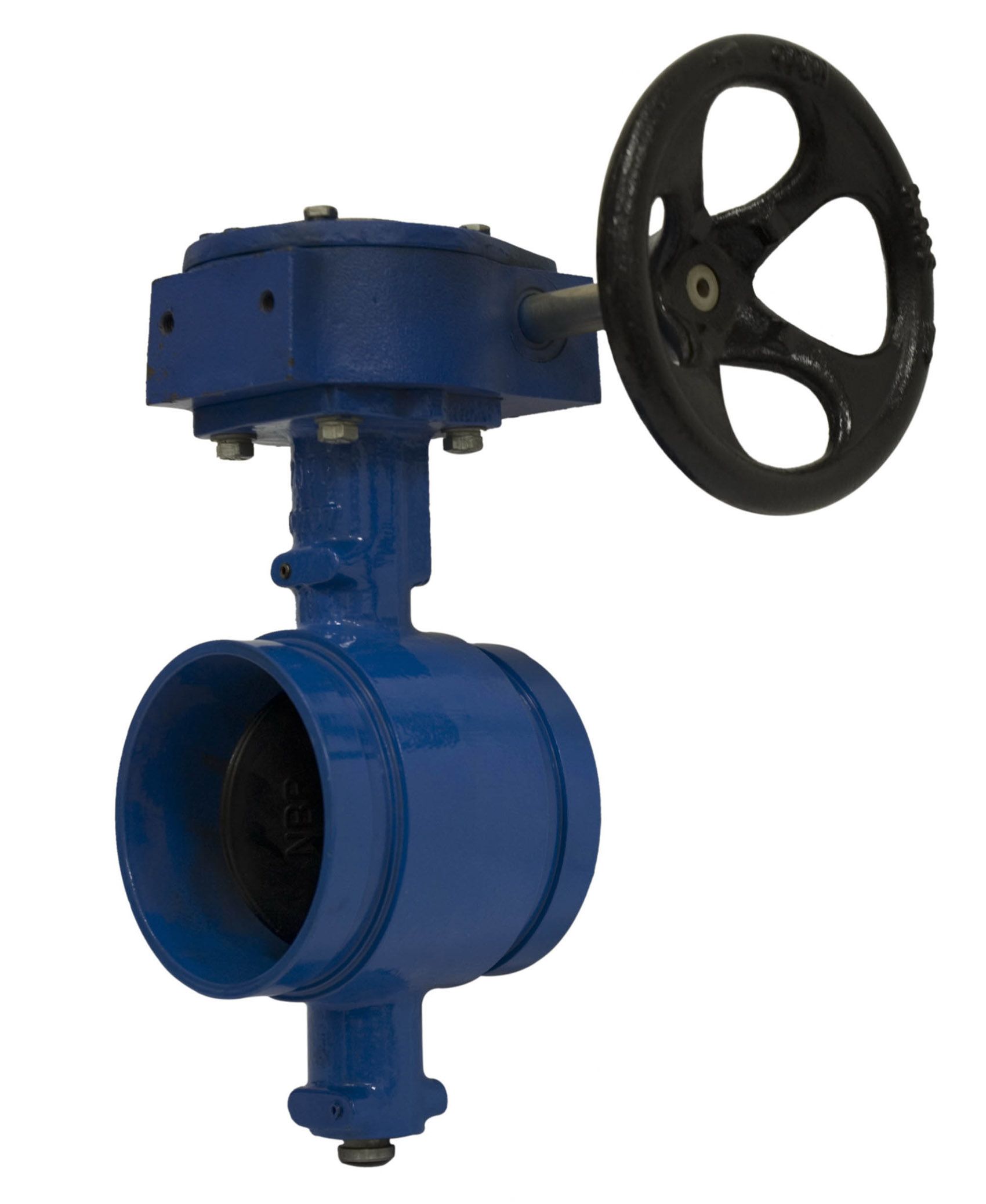

Grooved-end butterfly valve
DN50-DN300
SISCO Resilient Seated Grooved End Butterfly Valve Industrial Versions grooved end body design is to achieve fast and easy installation and un-installation on field. It offers economical yet reliable services for grooved end piping applications. With its unique feature, the valve is ideal for use of many industrial applications where a fast installation & un-installation is required, such as, mechanical rooms, process lines, condenser water-lines, dematerialized water-lines, water treatment system, boiler piping system, grooved piping system, and chilled & hot water-lines.
Valve body is coated with Epoxy (standard) or PPS (optional) inside-out to prevent possible internal and external corrosion. EPDM coated disc provides protection from chemical attack and erosion while forming a bubble tight shut-off against the inside wall of valve body.
Sisco grooved end butterfly valve is available in size 2 (DN50) thru 12 (DN300).
Material Configuration
The SISCO Grooved end butterfly valve grooved end butterfly valve is constructed of a Ductile Iron Body, Ductile Iron Disc with EPDM coating and 416 Stainless Steel Shaft, providing the most cost effective solution. Optional materials are also available to meet your specific application needs.
Operating Pressures
All SISCO Grooved end butterfly valves are rated at 175 psi bubble tight shut-off.
Flange and Pipe Schedule Compatibility
The standard C&C RBV-07 series grooved end butterfly valve are designed and manufactured in accordance with ANSI/AWWA C-606 Rigid Grooved Specification. Alternatively, SISCO Grooved end butterfly valve can also be custom made according to different international or corporate standards to fit in various grooved piping systems.
General Design Features
Grooved end body design features fast and easy installation and un-installation.
Epoxy or PPS coated body prevents internal and external corrosion.
EPDM is precisely encapsulated to precisely machined disc providing bubble tight shut-off, protection against corrosion and erosion, lower seating torque and longer life while featuring in minimize turbulence and maximum flow characteristic.
Double shafts design provides extra strong disc-to-shaft connection.
SISCO unique blowout-proof feature effectively eliminates stem from shaft-direction slide.
SISCO unique bushing design completely isolates the valve shaft from the body, resulting in increased control of the valve disc, maximum shaft support, lower valve seating torque, and longer valve life.
Sisco Flow Control Co., Ltd. is a leading valve manufacturer and exporter in China. SISCO factory covers 12, 000 square meters, containing general assemble workshops, machining workshops, coating workshops and testing workshops, equips with advanced assembling, machining, coating and testing equipments, and employs over 200 staffs many of whom are senior engineers and veteran managers. With more than 60 sets of production and testing equipment and adopting international advanced technology and standards, our company could fully meet our customers' requirement. This also guarantees the quality and delivery time of our products.
The leading products of our company are: Centerline Butterfly Valve, Centerline Pin-less Butterfly Valve, Flanged Butterfly Valve, Threaded Butterfly Valve, Wafer Style Check Valve, Threaded Check Valve, Global Valve, Gate Valve, Ball Valve, Needle Valve, Plunger Valve and supporting lengthening equipment. The main kinds of our valve operator are lever, gearbox actuator, pneumatic actuator and electric actuator. Our products share the characteristics of reasonable structure, good sealing performance, high corrosion resistance, low flow resistance, quick opening and closing, long service life, simple maintenance and easy to achieve self-control.
As a quality oriented manufacturer, SISCO, over the past 10 years, has developed a complete and effective quality control system covering raw material purchase, operation, quality inspection, record documentation and transportation. To enhance the quality control system, SISCO also developed and implemented series of quality control manuals, operation procedures, and employee education programs. As a result, the quality of SISCO's products has been wildly recognized not only by our customer, but also by various International Notified Bodies. SISCO now holds CQC ISO9001, DNV ISO 9001, CE, and UL certificates.
