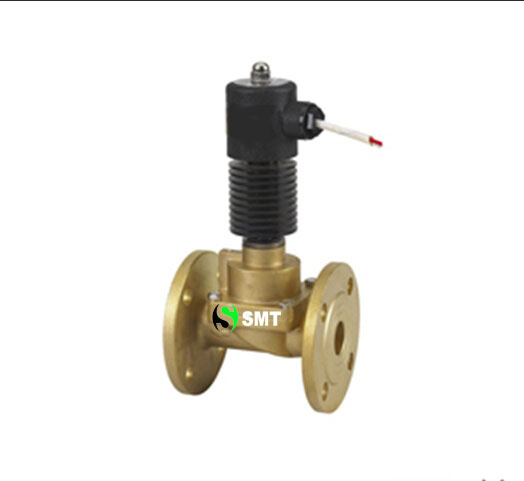

GWDRY series solenoid valve, G1 / 2 "~ G2" and flange details:
Applicable medium: Hot gas, liquid, oil
Medium temperature: -5 ~ 300 º C
Action by: Pilot or step direct-acting
Working pressure: NC: Step direct-acting 0 ~ 10kgf / cm2
NC: Pilot 0.5 ~ 16kgf / cm2
Body material: Brass (forging), stainless steel (precision casting)
Piston Seal
Coil protection factor: IP54
| Model | GWDRYX-15 | GWDRYX-20 | GWDRYX-25 | GWDRYX-32 | GWDRYX-40 | GWDRYX-50 | GWDRYX-15F | GWDRYX-20F | GWDRYX-25F | GWDRYX-32F | GWDRYX-40F | GWDRYX-50F |
| Joint Size | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" | flange | flange | flange | flange | flange | flange |
| Orifice | mm | 15 | 20 | 25 | 32 | 40 | 50 | 15 | 20 | 25 | 32 | 40 | 50 |
| Cv value | 4.8 | 8 | 12 | 24 | 29 | 48 | 4.8 | 8 | 12 | 24 | 29 | 48 |
| Length() | mm | 75 | 75 | 92 | 110 | 122 | 161 | 94 | 96 | 118 | 136 | 141 | 177 |
| High() | mm | 135 | 142 | 150 | 150 | 155 | 174 | 168 | 178 | 180 | 189 | 196 | 220 |
| Working Temperature |
| -5-250 |
| Working Pressure | Kgf/cm 2 | 0~10(0.5~16)kgf/cm 2 |
| Max Pressure | Kgf/cm 2 | 20 |
| Rated Voltaged | 220VAC/50HZ ;110 VAC/50HZ 1; DC24; DC12 etc |
