DESCRIPTION:
Rotary Piston Vacuum Pump can be operated independently, also can be a backing pump when combined with Roots Vacuum Pump, Oil Boater Pump, Oil Diffusion Pump, the pump must be fitted with appropriate accessories if the exhausted gas is corrosive to ferrous metal, reactive with vacuum pump oil, or rich in vapor and dust.
ADVANTAGES:
1. Sino-US technical cooperation
2. The highly complete varieties of Rotary Piston Vacuum Pumps
3. Seriated design, specialized manufacture, high cost performance
4. Advanced structure, excellent performance, easy to use, high reliability and durability
5. Best-selling for domestic and overseas: United States, Germany, Korea, Canada, Finland, lran, Austria, Russia and Taiwan etc.
APPLICATIONS:
Widely used in production and development of new materials, new technologies and new process for vacuum crystal pulling, vacuum coating, vacuum metallurgy, vacuum heat treatment, vacuum impregnation, vacuum drying, vacuum disillation, vacuum kneading, aerospace simulation experiments.
|
Model |
Displacement |
Ultimate Partial Pressure |
Ultimate Total Pressure |
Motor Power |
Suction |
Discharge |
Cooling Water |
|
2H-15DV |
15L/S 32CFM |
0.05Pa |
1Pa |
2.2, 1.5kW |
50mm |
40mm |
100(15ºC kg/h) |
|
2H-15DVA |
15L/S 32CFM |
0.05Pa |
1Pa |
2.2, 1.5kW |
50mm |
40mm |
Air Cooled |
|
2H-30DV |
30L/S 65CFM |
0.05Pa |
1Pa |
4/3kW |
63mm |
50mm |
200(15ºC kg/h) |
|
2H-45DVA |
45L/S 95CFM |
0.05Pa |
1Pa |
4kW |
63mm |
50mm |
Air Cooled |
|
2H-50DV |
50L/S 105CFM |
0.05Pa |
1Pa |
5.5kW |
80mm |
63mm |
300(15ºC kg/h) |
|
2H-70DV |
70L/S 150CFM |
0.05Pa |
1Pa |
7.5kW |
80mm |
63mm |
400(15ºC kg/h) |
|
2H-80DV |
85L/S 180CFM |
0.05Pa |
1Pa |
7.5kW |
80mm |
63mm |
500(15ºC kg/h) |
|
2H-100DV |
100L/S 210CFM |
0.05Pa |
1Pa |
11kW |
100mm |
80mm |
600(15ºC kg/h) |
|
2H-120DV |
120L/S 255CFM |
0.05Pa |
1Pa |
11kW |
100mm |
80mm |
600(15ºC kg/h) |
|
2H-150DV |
150L/S 320CFM |
0.05Pa |
1Pa |
15kW |
125mm |
100mm |
800(15ºC kg/h) |
|
2H-160DV |
160L/S 340CFM |
0.05Pa |
1Pa |
15kW |
125mm |
100mm |
800(15ºC kg/h) |
|
2H-220DV |
225L/S 480CFM |
0.05Pa |
1Pa |
22kW |
150mm |
100mm |
1200(15ºC kg/h) |
|
2H-450DV |
450L/S 950CFM |
0.05Pa |
1Pa |
45kW |
200mm |
150mm |
2400(15ºC kg/h) |
|
H-25DV |
25L/S 52CFM |
0.5Pa |
3Pa |
2.2, 1.5kW |
50mm |
40mm |
100(15ºC kg/h) |
|
H-25DVA |
25L/S 52CFM |
0.5Pa |
3Pa |
2.2, 1.5kW |
50mm |
40mm |
Air Cooled |
|
H-50DV |
50L/S 105CFM |
0.5Pa |
3Pa |
4/3kW |
63mm |
50mm |
200(15ºC kg/h) |
|
H-60DVA |
60L/S 130CFM |
0.5Pa |
3Pa |
4kW |
63mm |
50mm |
Air Cooled |
|
H-70DV |
70L/S 150CFM |
0.5Pa |
3Pa |
5.5kW |
80mm |
63mm |
300(15ºC kg/h) |
|
H-100DV |
105L/S 223CFM |
0.5Pa |
3Pa |
7.5kW |
80mm |
63mm |
400(15ºC kg/h) |
|
H-120DV |
120L/S 255CFM |
0.5Pa |
3Pa |
7.5kW |
80mm |
63mm |
500(15ºC kg/h) |
|
H-150DV |
150L/S 320CFM |
0.5Pa |
3Pa |
11kW |
100mm |
80mm |
600(15ºC kg/h) |
|
H-160DV |
160L/S 340CFM |
0.5Pa |
3Pa |
11kW |
100mm |
80mm |
600(15ºC kg/h) |
|
H-220DV |
225L/S 480CFM |
0.5Pa |
3Pa |
15kW |
125mm |
100mm |
800(15ºC kg/h) |
|
H-300DV |
300L/S 635CFM |
0.5Pa |
3Pa |
22kW |
150mm |
100mm |
1200(15ºC kg/h) |
|
H-600DV |
600L/S 1280CFM |
0.5Pa |
3Pa |
45kW |
200mm |
150mm |
2400(15ºC kg/h) |
|
H-150D |
150L/S 320CFM |
0.5Pa |
3Pa |
15kW |
100mm |
80mm |
700(15ºC kg/h) |
|
H-150 |
150L/S 320CFM |
1Pa |
6Pa |
15kW |
150mm |
80mm |
700(15ºC kg/h) |
|

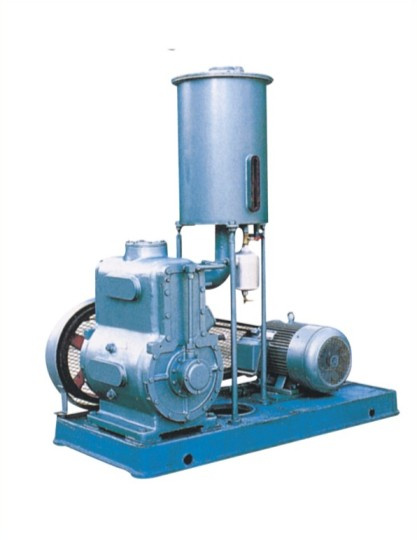

H-8A |
150,180L/S 320, 380CFM |
1Pa |
6Pa |
18.5kW |
150mm |
80mm |
700(15ºC kg/h)
|
As a plant, we specialized in design and manufacture vacuum pumps, vacuum systems for more than 20 years.
Presently DVE products include Roots Vacuum Pump, Water Ring Vacuum Pump, RotaryVane Vacuum Pump, Dry Screw Vacuum Pump, All kinds of Vacuum Systems, Vacuum Stations, Vacuum Spare Parts and the most extensive ranges of rotary piston vacuum pumps in the world, which are widely used in electronics, electrical, metallurgy, coating, ceramics, pharmaceuticals, chemical, papermaking industry, vacuum heat treatment, vacuum drying and impregnation for transformer, freeze-drying, energy industry, aerospace, or other fields.
We are equiped with:
1 Professional R&D team
2 Complete & Advanced production Line
3 Efficient & Considerate after-sales service -Fast Response to Customers' Feedback in 12 hours
We can offer you:
1 Customized Vacuum Solutions
2 On-time Delivery
3 Perfect Technical Support
4 Ture One Year Warranty - If pumps appear quality problems, we assure you free replacements within one year.
DVE - Where high quality is standard, responsibility lies.
