| Price: | US $ 50/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |

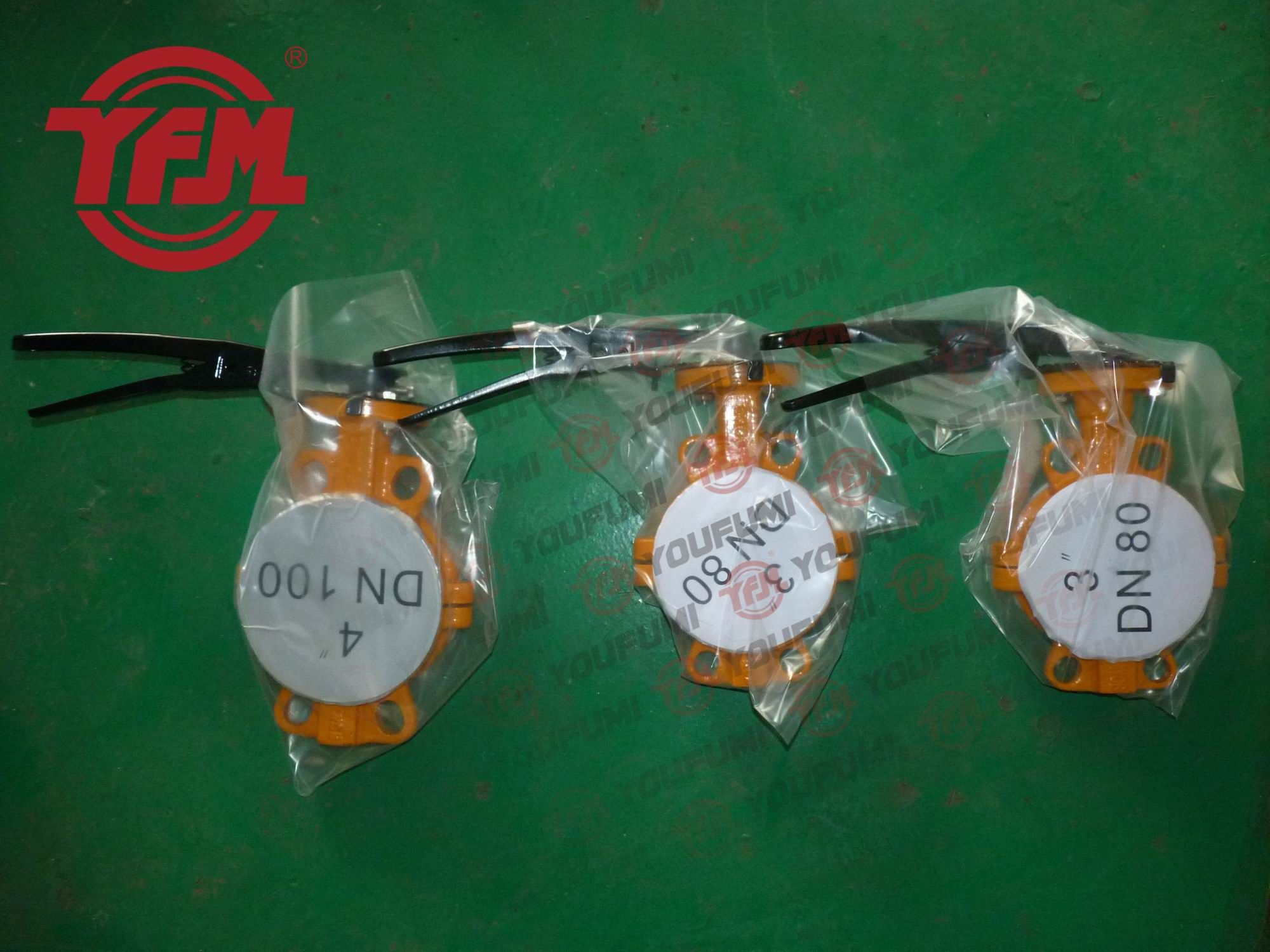

Handle manual PFA lined butterfly valve for chemical
Technical Specification
Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10 , GB/T 12221
Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927
Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M
Lining Material: PTFE , PFA , PO ,FEP, EPDM
Nominal Diameter: 2"-80"(DN50~DN2000)
Pressure Range: Class150 , PN6 , PN10 , PN16
Connection Type: Flange ,Wafer , Lug Connection
Operation Method: Manual ,Worn gear ,Electric ,Pneumatic actuator
Products Description
1.The lined butterfly valves bi-directional flow is possible at maxmium operating pressure. Since the valve port corresponds to the piping diameter, a high flow capacity is guaranteed.
2.It features ease of maintenance, repeatable on-off, long life durability.
3.The concentric design is commonly used in the power generation, brewing, water and food industries and suitable for both gaseous and liquid service. Typically applied in chemical/petrochemical process, food and beverage, and pulp and paper etc.
4.Lining material: PTFE, PFA, FEP, GXPO etc.
5.Connection type: wafer, flange, lug etc.
6.Operation methods: manual, worm gear, electric, pneumatic and hydraulic actuator.
7.Youfumi lined three-way ball valves are available as per the needs of applications in additional sizes and other than standard materials.
| Prod Model: | D71PFA |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: | Dn50~2000 |
| Material: | Wcb+PFA |
| Actuator: | Handle Manual |
| Pressure: | Pn16 |
| Work Pressure: | Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: | Soft Sealed |
| Connection Form: | Wafer |
| Structure: | Centre Sealing |
| Seal Form: | Auto Sealed |
| Working Temperature: | Normal Temperature (',-40??C |
| Application: | Industrial Usage |
