Handle Operate Flange Butterfly Valve (ANSI 150LB)

Handle Operate Flange Butterfly Valve (ANSI 150LB)
Price: US $ 15.45-15.7/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

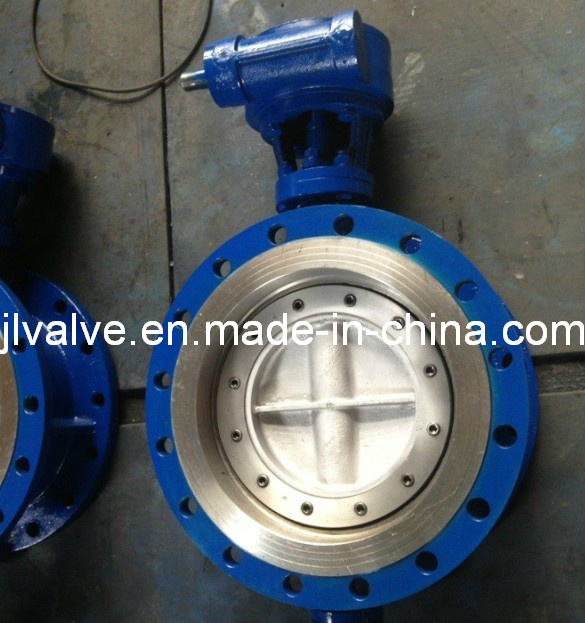

Handle Operate Flange Butterfly Valve (ANSI 150LB )
D343H-16C

Specification
Size: DN50-1200

Body: Cast Steel, Stainless Steel

Disc: CF8/ CF8M/ WCB

Seat: NBR/EPDM/PDFE /VITON

Color: Any color according to customer requirement

Working pressure: PN10/ 16/150lb

Flange standard: PN10/ 16/ ANSI150

Brief introduction for butterfly valve

1. Flanged butterfly valve, designed to comply with MSS-SP-67, BS5155, and API609. Compatible with GB, DIN, BS, ANSI flanges. Face to face according to ISO 5752.

2. Characteristic of wafer type spline butterfly valve is to splice the rubber liner on the body, the strength more highly and the seal more reliably for the seat.

3. The spline is between the shaft and disc



4. Available with handles, manual gear operators, and electric or pneumatic actuators
Prod Model: D343H-150LB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn50---Dn1200
Pressure: 150lb--300lb
Material: Stainless Steel, Wcb
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Metal Hard Sealed
Connection Form: Flange
Structure: Double-Eccentric Sealing
Seal Form: Auto Sealed
Working Temperature: Medium Temperature (',120??C
Application: Water Industrial Usage
Wenzhou Jinliang Valve Co., Ltd. is located in the enjoyment of the "China valve village " reputation of being known as the Zhejiang Wenzhou, the factory is located in Longwan District, in the Dushan Industrial zone, is a company specializing in the production, development, sales.

As one of the valve enterprises, mainly engaged in the production of valve products are: Butterfly valve. Gate Valve. Globe Valve, Ball valve. Check valve. The electric valve and a series of product specifications.

Factory has always been adhering to the " quality first, customer first, integrity management " principle, the implementation of total quality management based on, at competitive prices to meet your needs.

We sincerely welcome new and old customers come, calls, letter ordering negotiations. Let us in mutually beneficial cooperation, create success.
