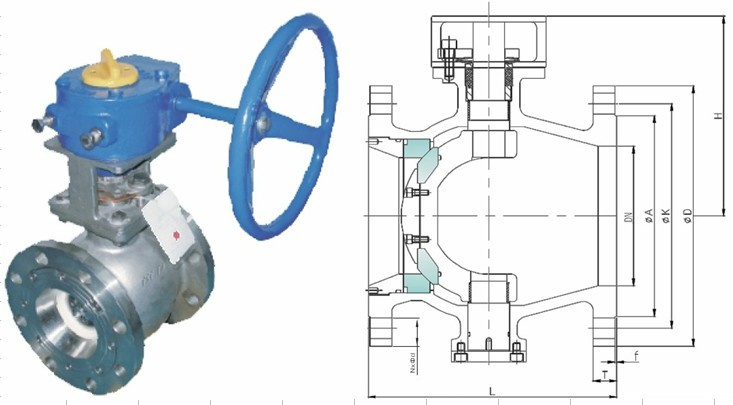

Model: BCBS-Q640TC-10/16C/P/R
Nominal Diameter: DN50~DN500
Nominal Pressure: 1.0~4.0MPa
Working Temperature: -40~280~450° C
Actuator: Worm gear
Gas-seal Testing Pressure is 0.6MPa.
Suitable Media: Pulp, alumina powder, coal dust, dust gas, waste residue
Features:
1. Straight-through type: One-way seals and eccentric structure. The ball will separate from the body when the valve is open, and its channel get through which makes valve not be blocked.
2. Swift switch: There is no touch between ball and seal seat when open and close, small torque and run swiftly, long-life, safe and reliable sealing.
3. The eccentric structure of the sealing spherical surface allows automatic wear compensation.
4. The hard-seal structrue of the ceramic dome valve can be high abrasion resistance and corrosion resistance.
Xiamen Brad Industry Corporation was founded in 1991 in China. We manufacture a wide range of industrial valves for oil, gas, refinery, chemical, marine, power station and pipeline industries. And our main products cover: Ceramic valve, knife gate valve, bellow sealed valve, gate valve, check valve, globe valve, ball valve, butterfly valve, plug valve, diaphragm valve, strainer, flanges and pipe fittings.
Materials range from conventional casting, forged steel to special alloy materials like monel, inconel, hastelloy and duplex steel. All of our products are designed, manufactured and tested fully to API, ASTM, ANSI, JIS, DIN and bs standards. On the side of export, we also enjoy rather high reputations in Asia, Middle East, south-America etc.
On the other hand, we also export mining equipment, such as crusher, screening & washing plant, feeding & conveying, also a complete crushing plant. Our cooperate factory located at datian town, sanming, fujian province, China, which is a place of specialized in manufacturing mining machinery.
