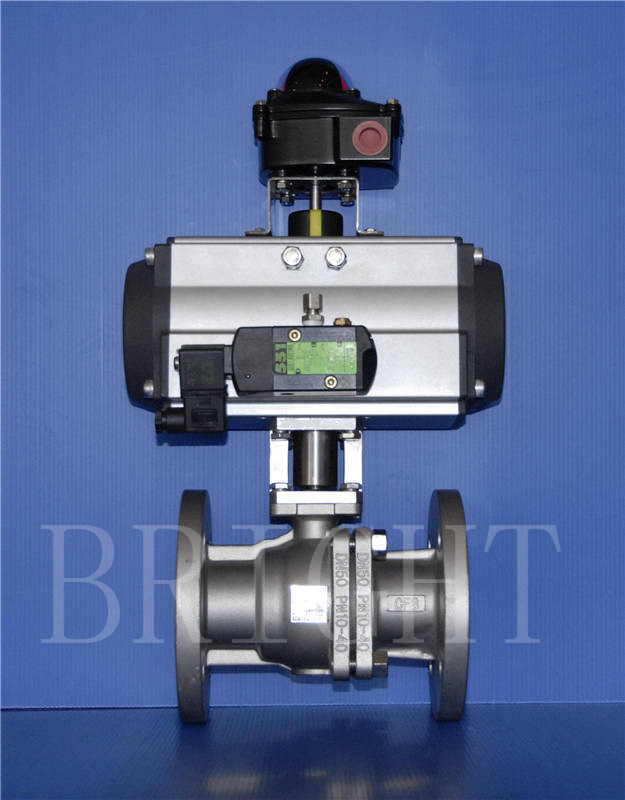

Hb2510 Pneumatic O Type Soft-Seal Ball Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
1. Product Introduction
HB2510 Pneumatic O Type Soft-Seal Ball Valve is applicable to chemical, petroleum, metallurgy, light industry and other industries for the shut-off of gas, liquid and slurry. It fearues anti-static function, pressure balance structure, anti blow out function, anti fire structure, auto-compensation structure of packing,automatic unloading device, micro-thermal design, exquisite appearance and high quality of interior, compact structure and zero leakage.

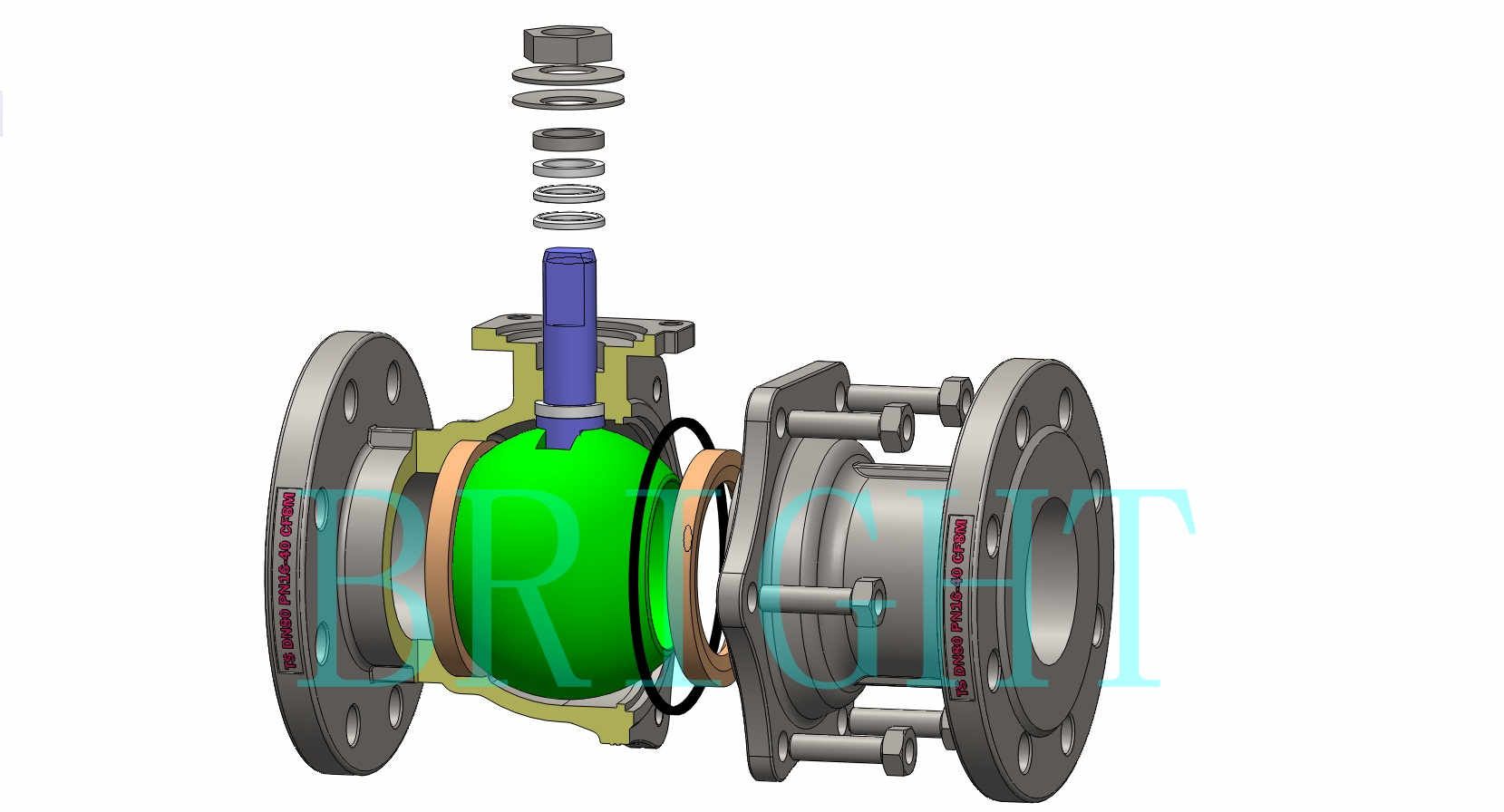

Patent No. 2012200388051, 2012300193843, 2012202282761, 2012202575777, 2012202575781, 201320895699.3, 201420104438.X Float Ball

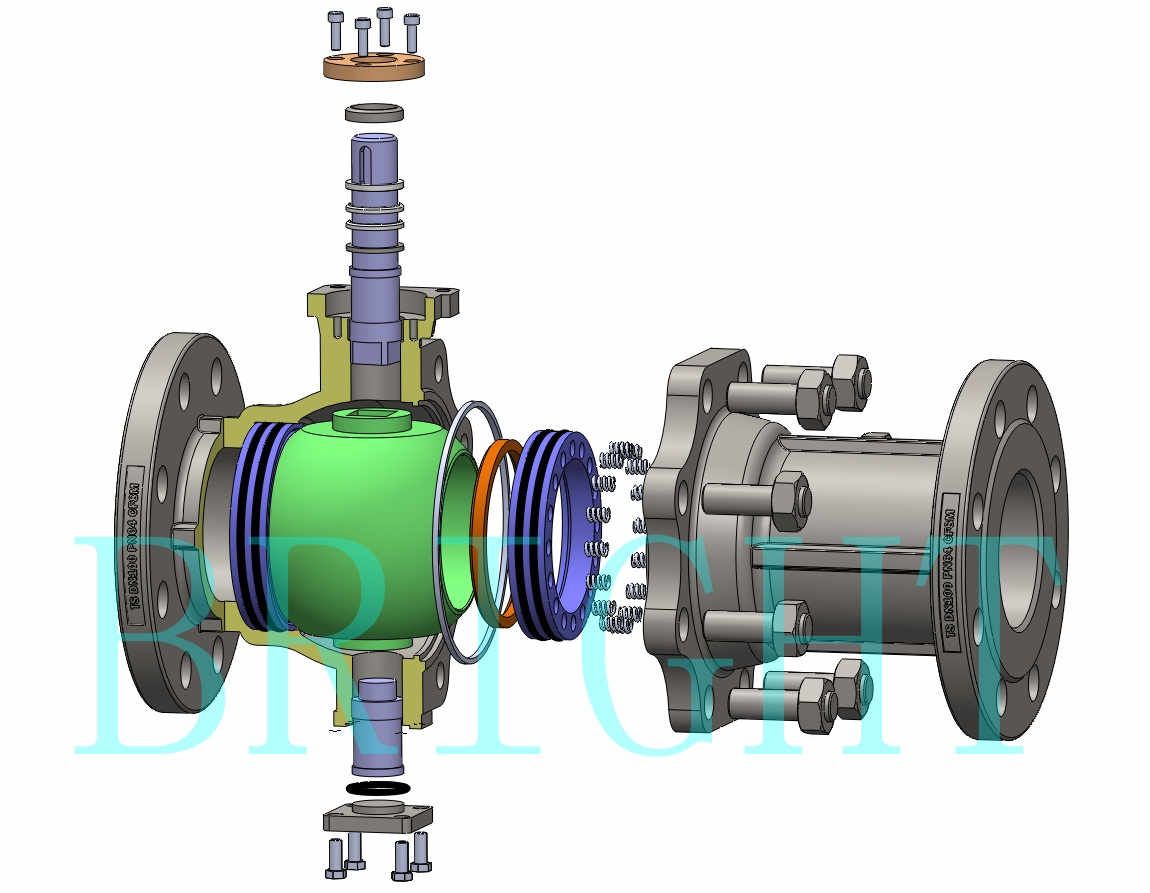

Trunnion Ball
2. Main Specifications
Rated stroke | 0~90° |
Flow characteristics |
Quick open |
Leakage |
Full tight, zero leakage |
Temperature | -29~150ºC |
3. Body Specifications| Model | HB2510 | HB2510F | HB2510L |
| Nominal Dia. | DN15~DN800(1/2"~30") | DN15~DN800(1/2"~30) | DN15~DN800(1/2"~30") |
Pressure rating | PN | 1.6, 2.5 | 4.0 | 6.4 | 1.6, 2.5 | 4.0 | 6.4 | 1.6, 2.5 | 4.0 | 6.4 |
| ANSI | CL150 | CL300 | CL600 | CL150 | CL300 | CL600 | CL150 | CL300 | CL600 |
Type |
Float Ball
(F.9) | DN15~DN150
(1/2"~6") | DN15~DN150
(1/2"~6") | DN15~DN50
(1/2"~2") | DN15~DN150
(1"~6") | DN15~DN150
(1"~6") | DN15~DN50
(1/2"~2") | DN15~DN150
(1"~6") | DN15~DN150
(1"~6") | DN15~DN50
(1/2"~2") |
Trunnion ball
(F.10) | DN200~DN800
(8"~32") | DN200~DN800
(6"~32") | DN65~DN800
(2.5"~32") | DN200~DN800
(8"~32") | DN200~DN800
(6"~32") | DN65~DN800
(2.5"~32") | DN200~DN800
(8"~32") | DN200~DN800
(6"~32") | DN65~DN800
(2.5"~32") |
| Ball type | Full bore | Full bore | Full bore |
| Connection | Flanged | Flanged | Flanged |
| Material | WCB,CF8,CF8M,CF3M | WCB,CF8,CF8M,CF3M | LCB,CF8,CF8M |
| Bonnet | Without | Without | Extension (forging) |
| Packing | PTFE/PPL/PEEK | PTFE/PPL/PEEK | PCTFE |
| Leakage Class | Full tight, zero leakage | Full tight, zero leakage | Full tight, zero leakage |
| Characteristics | Quick open | Quick open | Quick open |
| Note: | Reduced bore for option |
4. Applicable Standard
| Chinese Standard | American Standard |
| Quality | ISO9001,TS2710J59 | ISO9001 |
Design and manufacture | GB/T12224-2005 | API 6D |
| Flange | GB9112-9124,HG20592-2009 | ASME B16.5 |
Face to Face | GB12221-2005 | ASME B16.10 |
| Inspection & test | GB/T13927 | API 598 |
5. Temp. Range of Main Material for Body
| S/N | Par Part Name | Material | Allowable Temp. |
| 1 | Packing | RPTFE | -29~+200ºC |
| PPL | -29~+200ºC |
| PEEK | -29~+230ºC |
| PCTFE | -196~+200ºC |
| 2 | Body | WCB | -29~+427ºC |
| CF8 | -196~+538ºC |
| CF8M | -196~+538ºC |
| CF3M | -254~+455ºC |
| 3 | Flange gasket | PTFE | -29~+180ºC |
| PPL | -29~+220ºC |
| PEEK | -29~+260ºC |
| PCTFE | -196~+200ºC |
| 4 | Seat | PTFE | -29~+180ºC |
| PPL | -29~+220ºC |
| PEEK | -29~+260ºC |
| PCTFE | -196~+200ºC |
| 5 | Vice body body | WCB | -29~+425ºC |
| CF8 | -254~+816ºC |
| CF8M | -254~+816ºC |
| CF3M | -254~+455ºC |
| Prod Model: |
HB2510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
15 Mm (1/2")-800mm(32") |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Application: |
Water Industrial Usage |
| Material: |
CS, S.S, Alloy Steel |
| Nominal Pressure: |
1.6MPa(Cl150)-6.4MPa(Cl600) |
| Structure: |
Float Ball and Trunnion Ball |
| Type: |
Float Ball Valve and Trunnion Ball Valve |
| Function: |
Shutoff |
| Temperature: |
Customized |
