Hb4410 Electric Low-Load Butterfly Control Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product introduction
HB4410 electric low-load butterfly control valve is independently developed by our company for practical working conditions in industries. It is designed, simulated and programmed with 3-dimension software UG, and processed with advanced high precision digital control machine. The structure is special, with the function of block-prevention, high-temperature resistance, applicable to the control of air and coal gas in metallurgy industry and glass industry.
The product is comprised of butterfly valve and electric actuator. Because an anti-high temperature bracket can be mounted on the valve, it can be used under the condition of high temperature.
The product has many good features such as control, quick open, sample structure, easy operation and maintenance, large caliber, light weight and large rated flow coefficient.
Product characteristics
1. Most parts of the electric actuator are made from aluminum alloy. And the whole machine has such characteristics as small cubage, light weight and compact structure.
2. Under the function of the sophisticated electric actuator, compared with other products in the same field, it is much better in such aspects as linearity, Hysteresis and dead band.
3. Large caliber, small flow resistance, large rated flow coefficient
4. With wrapping bearing, dustproof, tar-prevent and block-prevent.
6. Plain seat type structure may resist high temperature.
Application standard- Quality system: ISO9001
- Design: refer to GB12338,MSS-SP-68
- Face to face: refer to GB12221-89
- Flange standard: JB/T79.1-94, ANSI
- Test standard: GB/T7387-94,API598
Working principle
The electric actuator provides the torque required for the open and close of disc. The output torque of power plant (generally refers to rotary motor) in actuator after increased through internal mechanical transmission directly drives valve. Under the control of microprocessor, the change of opening degree is proportional to the change of input signal; meanwhile, actuator feeds back output signals for position. When interruption of power supply occurs, hand wheel may be used to operate valve by hand.
| Model | HS4410 |
| PN | 0.6MPa/ANSI125 |
| DN | DN50-4800 (please contact us for DN3000 above) |
| Type of actuator | RUIYU3810R electric actuator or ITQ electric actuator |
| Input (output) signal | 4-20mA.DC (field bus signal is optional) |
| Type of disc | Open type |
Allowable fluid temperature and leakage
| Normal | ≤200°C |
| High temp. I | 200~+450°C |
| High temp. II | 450~+580°C |
| High temp. III | 580~+690°C |
| High temp. IV | 690~+800°C |
| Allowable leakage = Rated Cv× | DN50-DN700 | 2%-5% (proportional to temperature) |
| DN800-DN3000 | 1.5%-3% ( proportional to temperature) |
| Rated stroke | 0-90° |
| Ambient temperature | -20~80°C (Note: If the working ambient temperature of accessories such as positioner or solenoid valve is lower than this temperature, the lowest working ambient temperature of accessories should be taken as the ambient temperature of the whole machine; the product should be specially produced or configured if over 80°C). |
| Inherent flow characteristics | Almost equal percentage |
| Rangeability | 30:1 |
| Material of parts | See Breakdown Drawing of valve and Table of Material for parts |
Note: When fluid temperature is over 800°C, please inform us for special materials or fire- resistant materials.
Main technology parameters| Basic error(%) | ±2.0%(with positioner) | ±8%(without positioner) |
| Hysteresis(%) | 1.5%(with positioner) | 6%(without positioner) |
| Dead band(%) | 0.8%(with positioner) | 5%(without positioner) |
Rated CV value| DN | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| 60º | 83 | 158 | 278 | 425 | 610 | 1040 | 1700 | 2480 | 3300 | 4350 |
| 90º | 165 | 320 | 560 | 900 | 1280 | 2300 | 3500 | 5200 | 6800 | 9000 |
| DN | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1400 |
| 60º | 5500 | 6800 | 9800 | 14000 | 17300 | 23000 | 27000 | 34000 | 39000 | 50400 |
| 90º | 11000 | 14000 | 20500 | 28000 | 36400 | 46000 | 57000 | 68000 | 81000 | 104664 |
| DN | 1600 | 1800 | 2000 | 2400 | 2800 | 3200 | 3600 | 4000 | 4400 | 4800 |
| 60º | 65828 | 83313 | 102857 | 148114 | 201600 | 263313 | 333255 | 411426 | 497825 | 592453 |
| 90º | 136704 | 173061 | 213600 | 307584 | 418658 | 546816 | 418658 | 516861 | 625401 | 744279 |

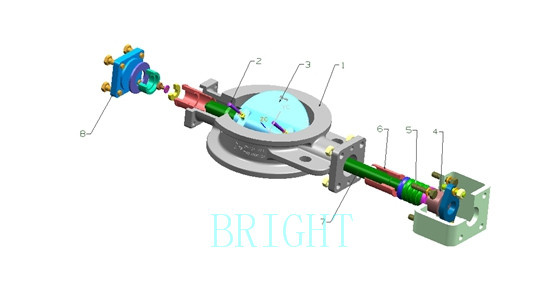

Material of main parts| No. | Name of parts | Material | No. | Name of parts | Material |
| 1 | Body | WCB | 5 | Packing | PTFE |
| 2 | Taper pin GB117-86 | 304 | 6 | Bush | 304(hardened) |
| 3 | Disc | WCB | 7 | Valve stem | 2Cr13 |
| 4 | Gland | 304 | 8 | Bottom flange | 45# |
- Optional material (Supply as your request)
| No. | Name of parts | Material | Recommended temp. range |
| 1 | Body | WCB | -40~+450°C |
| CF8 | -60~+580°C |
| 316L | -60~+800°C |
| 310S |
| 2 | Disc | WCB | -40~+450°C |
| CF8 | -60~+580°C |
| 316L | -60~+800°C |
| 310S |
| 3 | Stem | 304 | -60~+580°C |
| 316L | -60~+800°C |
| 4 | Packing | PTFE | -20~+180°C |
| Graphite | -20~+800°C |
Internal structure (figure)

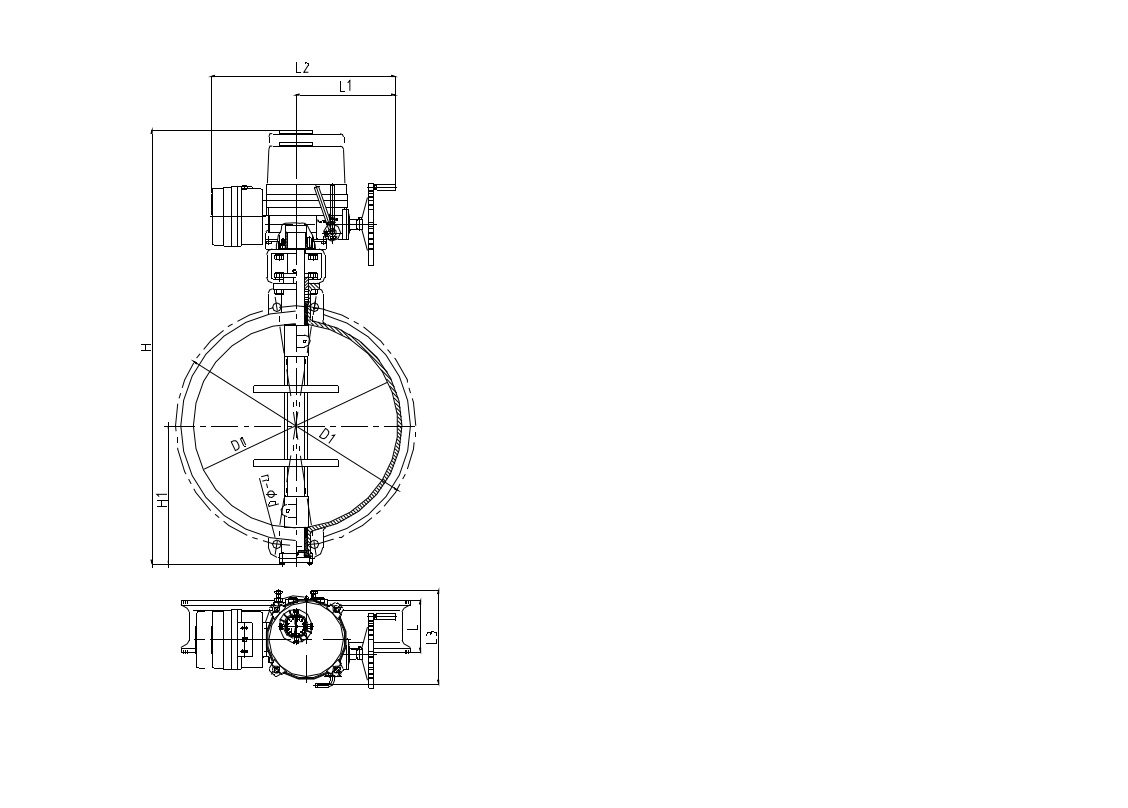

Diagram for external and installation dimension - With 3810R series actuator or AUMA electric actuator ( other models may also be applied according to customers' requirement)

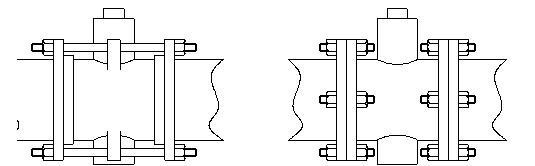

- Installation diagram
Wafer connection Flange connection
(DN900 and below) (DN1000 and above)
External dimensions(Based on standard configuration table)
| DN | L | L1 | L2 | L3 | D | D1 | H | H1 | H2 | Through hole Q'ty |
| n | Φd |
| DN50 | 60 | 184 | 270 | 220 | 90 | 110 | 512 | 94 | 231 | 4 | 14 |
| DN80 | 60 | 184 | 270 | 220 | 125 | 150 | 542 | 109 | 260 | 4 | 18 |
| DN100 | 60 | 184 | 270 | 220 | 145 | 170 | 573 | 118 | 280 | 4 | 18 |
| DN125 | 60 | 184 | 270 | 220 | 175 | 200 | 621 | 139 | 320 | 8 | 18 |
| DN150 | 60 | 184 | 270 | 220 | 200 | 225 | 663 | 152 | 345 | 8 | 18 |
| DN200 | 70 | 265 | 338 | 229 | 255 | 280 | 678 | 175 | 425 | 8 | 18 |
| DN250 | 70 | 265 | 338 | 229 | 310 | 335 | 812 | 200 | 496 | 12 | 18 |
| DN300 | 80 | 286 | 368 | 259 | 362 | 395 | 899 | 224 | 545 | 12 | 23 |
| DN350 | 80 | 286 | 368 | 259 | 412 | 445 | 1031 | 239 | 604 | 12 | 23 |
| DN400 | 100 | 286 | 368 | 259 | 462 | 495 | 1133 | 281 | 706 | 16 | 23 |
| DN450 | 100 | 307 | 410 | 297 | 518 | 550 | 1189 | 309 | 764 | 16 | 23 |
| DN500 | 100 | 307 | 410 | 297 | 568 | 600 | 1238 | 333 | 811 | 16 | 23 |
| DN600 | 150 | 307 | 410 | 297 | 755 | 705 | 1431 | 442 | 1004 | 20 | 25 |
| DN700 | 150 | 307 | 410 | 297 | 860 | 810 | 1592 | 498 | 1118 | 24 | 25 |
| DN800 | 200 | 307 | 410 | 319 | 975 | 920 | 1707 | 556 | 1233 | 24 | 30 |
| DN900 | 200 | 307 | 410 | 319 | 1075 | 1020 | 1795 | 599 | 1321 | 24 | 30 |
| DN1000 | 200 | 307 | 410 | 319 | 1175 | 1120 | 2130 | 754 | 1476 | 28 | 30 |
| DN1100 | 200 | 307 | 410 | 319 | 1300 | 1242 | 2230 | 804 | 1576 | 32 | 30 |
| DN1200 | 200 | 307 | 410 | 319 | 1400 | 1340 | 2314 | 838 | 1660 | 32 | 34 |
| DN1400 | 280 | 357 | 462 | 369 | 1620 | 1560 | 2910 | 1055 | 2532 | 36 | 34 |
| DN1600 | 320 | 357 | 462 | 369 | 1820 | 1760 | 3210 | 1155 | 2872 | 40 | 34 |
| DN1800 | 350 | 357 | 462 | 369 | 2045 | 1970 | 3510 | 1230 | 2952 | 40 | 41 |
| DN2000 | 350 | 357 | 462 | 369 | 2265 | 2180 | 3810 | 1423 | 3415 | 48 | 48 |
| DN2200 | 380 | 357 | 462 | 369 | 2485 | 2390 | 4110 | 1623 | 3915 | 48 | 52 |
| DN2400 | 410 | 357 | 462 | 369 | 2705 | 2600 | 4410 | 1820 | 4315 | 48 | 52 |
| DN2600 | 440 | 410 | 506 | 426 | 2925 | 2810 | 4710 | 2020 | 4815 | 60 | 68 |
| DN2800 | 470 | 410 | 506 | 426 | 3145 | 3020 | 5010 | 2220 | 5318 | 60 | 68 |
| DN3000 | 500 | 410 | 506 | 426 | 3365 | 3230 | 5310 | 2420 | 5820 | 72 | 70 |
Note: 1. If fluid temp. is over 200ºC, bracket needs to be installed. So the corresponding height of bracket should be added to dimension H, as follows:
| Valve type | Height of bracket added | Recommended fluid temp.ºC | Remarks |
| High temp. I | 150 | 200~+450ºC | |
| High temp. II | 250 | 450~+580ºC | |
| High temp. III | 450 | 580~+690ºC | |
| High temp. IV | 650 | 690~+800ºC | |
2. When a valve does not comply with standard configuration, dimensions are subject to change based on actual dimensions.
Weight table of electric low-load butterfly control valve (kg)| DN | 50 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| Weight | 43 | 47.5 | 49 | 51 | 53 | 72 | 78 | 101 | 106 | 138 |
| DN | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1400 |
| Weight | 192 | 231 | 253 | 287 | 468 | 596 | 732 | 825 | 1172 | 1477 |
| DN | 1600 | 1800 | 2000 | 2400 | 2800 | 3200 | 3600 | 4000 | 4400 | 4800 |
| Weight | 1695 | 1898 | 2276 | 2786 | 3272 | 4560 | 6752 | 11983 | 15020 | 20563 |
| Format | ×××+×+××+×+××+×+×××+×+×+×+×××+×+×+×××+×+×+×+×+×+×...(Variable length) |
| Example | EM301-300/300-6-CF8/CF8-%[email protected]/AC01.1/GS63 electric low-load butterfly control valve | Example
Description | |
| No. | Digit | Meaning | Length | Format | Fixed Valve or value range |
| 1 | 1to N | Product model | Variable length | Letter and figure, with fixed value | |
| 2 | N+1 | Bound symbol | 1 | Character | - |
| 3 | N+2 to M | Nominal diameter [core, seat and sleeve with DN/dn said (with CV said when dn25)] | Variable length | Letter and figure, with fixed value | |
| 4 | M+1 | Bound symbol | 1 | Character | - |
| 5 | M+2 to P | Nominal pressure | Variable length | Letter and figure, with fixed value | |
| 6 | P+1 | Bound symbol | 1 | Character | - |
| 7 | P+2 to R | Material code [boday/core or body/disc] | Variable length | Letter and figure, with fixed value | |
| 8 | R+1 | Bound symbol | 1 | Character | - |
| 9 | R+2 | Flow characteristic | 1 | Letter, with fixed value | %--Equal percentage |
| 10 | R+3 | Bound symbol | 1 | Character | - |
| 11 | R+4 to S | Allowable fluid temperature | Variable length | figure, with fixed value | |
| 12 | S+1 | Bound symbol | 1 | Character | - |
| Prod Model: |
HB4410 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Dia.: |
50mm(1/2")-4800mm(192") |
| Structure: |
Centre Sealing |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Application: |
Water Industrial Usage |
| Connection Form: |
Wafer or Flange |
| Seal Form: |
RF |
| Valve Stem: |
Normal or Extended |
| Working Temperature: |
Customized |
| Material Of Seal Surface: |
Soft Sealed or Metal Hard Sealed |
